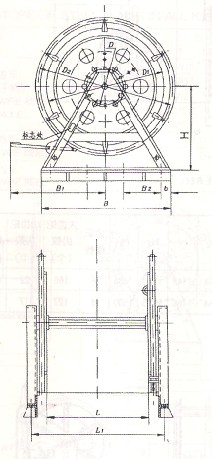

Mooring Fibre Wire Reel

unit: mm

Standard	Dia of Fiber Wire	Arange Length	D	D1	D2	L	L1	B	B1	H	Anchor Bolt				Weight(kg)
Standard	Dia of Fiber Wire	Arange Length	D	D1	D2	L	L1	B	B1	H	Screw Dia	Amount	b	B2	Weight(kg)
30	28~30	140~220	190	650	820	750	930	650	630	520	M16	8	40	190	85.1
34	32~34	160~220	190	650	820	860	1046	650	630	520					89.1
38	36~38	170~220	190	650	820	880	1056	650	630	520					93.1
42	40~42	170~220	255	810	980	850	1056	820	650	575		10		185	118.5
46	44~46	180~220	255	810	980	930	1126	820	650	575				185	122.5
50	48~50	180~220	325	970	1140	910	1108	980	800	655				225	140.3
54	52~54	190~220	325	970	1140	930	1128	980	800	655				225	145.3
60	56~60	190~220	405	1150	1320	905	1108	1140	880	745		12		212	182.6
72	64~70~72	200~220	490	1330	1500	920	1132	1310	1030	830		12		246	216.1
