Mooring Anchor

Mooring Anchor

We are marine supplier since 1996, supply stockless anchor, stock anchor, offshore anchor, mooring anchor. ABS, LR, BV, DNV, GL, DNV, IRS, CCS are available for our marine products. With the advantage of widely source, quality, price and good after-sale service, we would be your reliable partner in China.
We can offer all type mooring anchors with certificate of original.
1.Material: Steel Plate
2.Weight: 1500KGS-25000KGS
3.Certificate: ABS, LR, BV,DNV, GL, IRS, CCS.

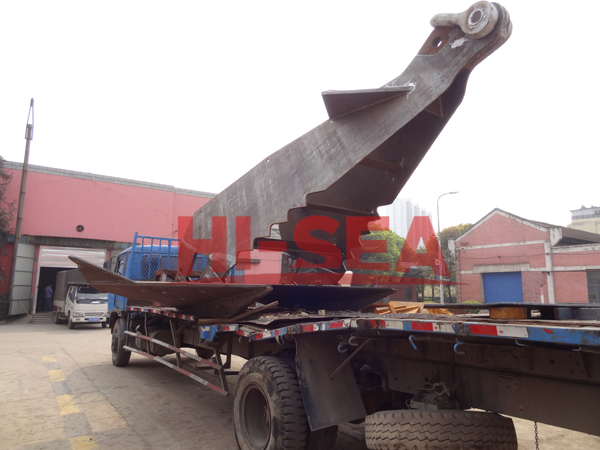

Mooring Anchor

Mooring anchor

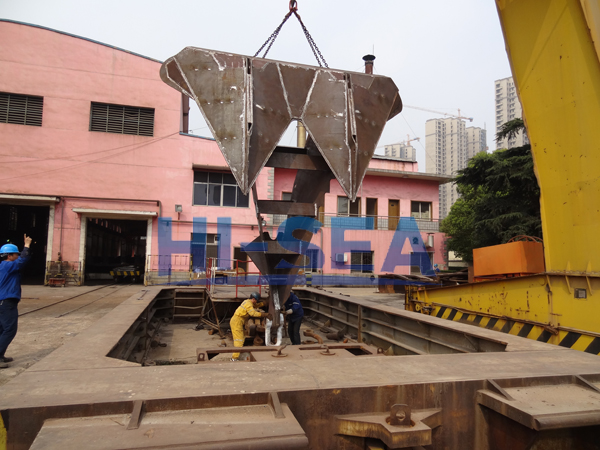

Mooring Anchor

Mooring anchor

Mooring Anchor

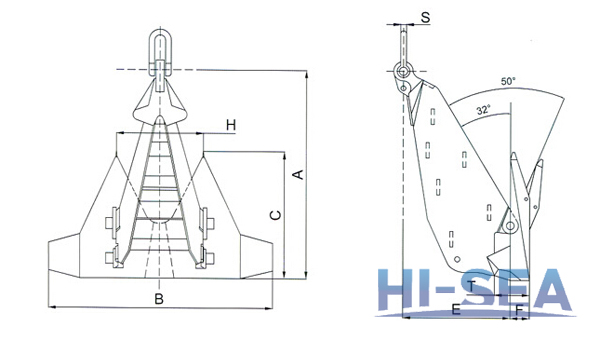

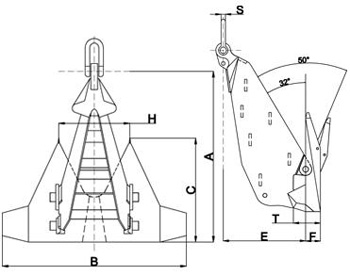

Mooring anchor process drawing




Specification:



Nominal Weight (kg)

Dimensions (mm)

A

B

C

E

F

H

T

S

1,500

2,954

3,184

1,812

1,505

271

1,230

493

ŽÁ80

3,000

3,721

4,011

2,283

1,896

342

1,550

622

ŽÁ90

5,000

4,412

4,756

2,707

2,248

406

1,837

738

ŽÁ110

7,000

4,910

5,290

3,011

2,500

453

2,045

825

ŽÁ117

8,000

5,161

5,563

3,166

2,629

474

2,149

862

ŽÁ130

10,000

5,559

5,992

3,410

2,832

511

2,315

929

ŽÁ140

12,000

5,908

6,368

3,624

3,010

543

2,460

988

ŽÁ150

15,000

6,364

6,860

3,904

3,242

585

2,650

1,064

ŽÁ170

18,000

6,763

7,290

4,149

3,446

622

2,816

1,131

ŽÁ180

20,000

7,004

7,550

4,297

3,569

644

2,917

1,171

ŽÁ190

22,000

7,230

7,794

4,436

3,684

665

3,011

1,209

ŽÁ200

25,000

7,545

8,133

4,629

3,844

694

3,142

1,262

ŽÁ200
