Marine Waste Compactor


Marine Waste Compactor

Marine waste compactor is a sort of environmental-friendly equipment. It is used to dispose kitchen garbage and household refuse. The marine waste compactor is employed with hydraulic drive, high-performance sealing, independent power structure and electric system. It is a good assistant for you to settle garbage. You can choose the suitable one according to your requirements. If you are interested in the product, please contact us.

Features

  • The man body is made of stainless steel or carbon steel
  • The compressing chamber is an independent and-pushed trolley, easy for replacement and garbage sorting
  • Garbage compacting and baling functions are both available
  • Easy installation and operation
  • The power is cut off upon opening the door in order to ensure safety
  • Germany imported motor, french imported electrical system
  • Different voltage and specification are available

Specifications

Model

Capacity

Pressure

Rating

Voltage

Size(WˇÁDˇÁH)

Net Weight

HSB-125

125L

8T

2.2kW

380-415V/3/50Hz

700ˇÁ650ˇÁ1800mm

450kg

440-480V/3/60Hz

HSB-500

500L

8T

2.2kW

380-415V/3/50Hz

1200ˇÁ1150ˇÁ1800mm

600kg

440-480V/3/60Hz

HSB-1000

1000L

15T

4kW

380-415V/3/50Hz

1200ˇÁ1150ˇÁ2300mm

680kg

440-480V/3/60Hz

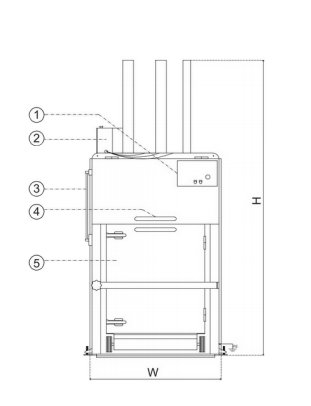

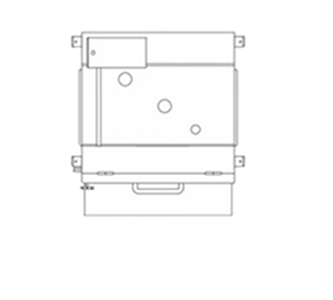

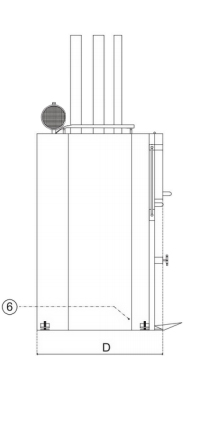

Drawings of Marine Wast Compactor

Marine Waste CompactorMarine Waste CompactorMarine Waste Compactor

˘ŮControl Box

˘ÚMotor

˘ŰHydraulic Rod

˘ÜHandle

˘ÝWheeled Stainless Steel Trolley

˘ŢEarthing screw
