Marine Shafting Gliding Type Intermediate Bearing GB/T14364-93(A type)[Search Related Products]

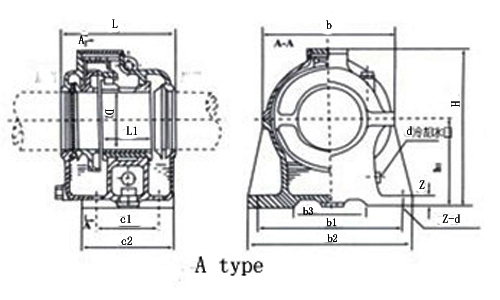

Marine Shafting Gliding Type Intermediate Bearing GB/T14364-93(A type)

;

Type		Dimensions (mm)														Weight (kg)
Type		D	L	L1	H	h1	h2	b	b1	b2	b3	C1	C2	d	z-d1	Weight (kg)
A	80	80	190	65	262	135	23	220	250	296	115	185	125	G3/4	4-21	35
	100	100	200	80	270	145	23	240	270	316	120	195	135	G3/4	4-21	40
	120	120	225	100	312	160	25	270	300	350	150	220	160	G3/4	4-21	50
	140	140	250	115	370	190	28	304	340	390	170	244	194	G3/4	4-21	63
	160	160	280	130	400	205	28	330	370	420	200	274	224	G3/4	4-21	75
	180	180	335	145	485	265	30	400	450	510	220	280	230	20	4-25	124
	200	200	350	160	496	275	35	410	450	510	270	326	250	20	4-25	136
	220	220	380	180	544	292	38	430	490	566	280	374	298	20	4-25	165
