Marine Shafting Gliding Intermediate Bearing [Search Related Products]

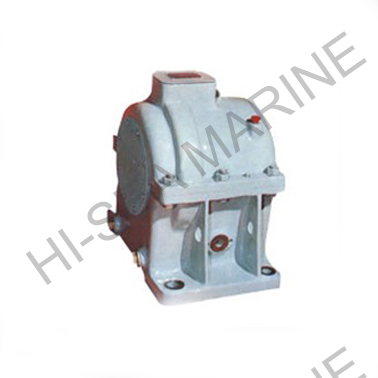

Marine Shafting Gliding Intermediate Bearing

Type		Dimensions (mm)														Weight (kg)
Type		D	L	L1	H	h1	h2	b	b1	b2	b3	C1	C2	d	z-d1	177	191

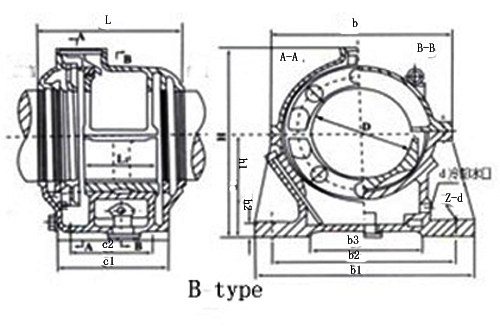

B	250	250	420	195	580	300	40	490	530	610	320	322	250	20	4-32	205	223
	280	280	450	215	620	310	40	520	560	630	340	340	270	20	4-32	235	265
	300	300	480	230	635	320	40	550	590	660	360	370	298	20	4-32	310	360
	320	320	500	250	690	350	50	580	630	700	380	390	320	20	4-32	401	474
	350	350	530	270	780	400	50	650	700	780	420	418	334	20	4-38	450	530
	380	380	560	290	790	420	55	710	760	840	430	460	380	25	4-38	558	650
	400	400	590	300	810	440	55	730	780	860	450	490	400	25	4-38	962	1090
	420	420	620	320	900	460	65	770	820	920	460	500	400	25	4-44	1060	1100
	450	450	660	340	930	480	65	810	840	940	490	528	424	32	4-44	1100	1200
	480	480	680	360	960	500	65	820	870	970	500	545	445	32	4-50	1174	1320
	500	500	710	380	1060	570	70	900	1000	1120	520	600	480	32	4-50	1350	1590
	530	530	730	410	1090	580	70	920	1020	1140	550	620	500	32	4-50
	560	560	780	430	1140	620	75	970	1080	1200	600	674	554	32	4-50

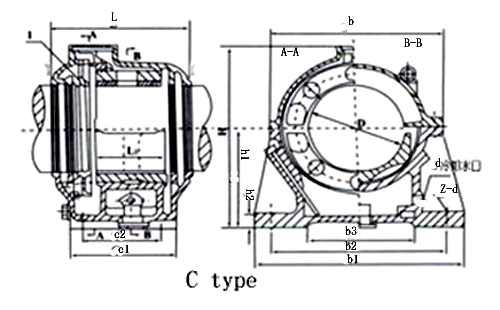

C	600	600	820	460	1180	650	75	1000	1130	1260	640	700	580	32	4-50
	630	630	860	480	1220	670	80	1060	1170	1300	670	720	600	32	4-50
	670	670	920	510	1260	690	85	1150	1250	1370	710	750	630	32	6-50		2000
	710	710	960	540	1330	710	85	1340	1340	1470	900	800	670	32	6-50
	750	750	1050	570	1400	750	90	1420	1580	1580	1000	850	710	32	6-50
	800	800	1100	610	1480	800	90	1460	1620	1620	1100	920	760	32	6-50
