Marine Oblique Spot Light

Marine Oblique Spot Light

Marine oblique spot lights including TG3, TG3-A, CTG3, CTG3-A, TG14 are the important marine lighting tools. The light body can rotate for 180 degrees horizontally and pitching 30 degrees. The lampshade is transparent safe toughened glass. It is equipped with focus nut under the light shell, which can be used to adjust the lighting focus.

Product Details:

1. Type: TG3, TG3-A, CTG3, CTG3-A, TG14

2. Voltage: DC110V/ AC220V

3. Rate of Power: 1000W

4. Light Source: Incandescent Focus Bulb

5. Lampholder: E40

6. Material: Steel

7. Protection Class: IP56

8. Cable outside diameter: ŽÁ10-ŽÁ12

9. TG3, TG3-A, CTG3 and CTG3-A have lifter and controller.

Specification:

Type

Voltage

Power

Lamp Holder

Material

Protection class

Weight

TG3

DC110V/AC220V

1000W

E40

Steel

IP56

47.5kg

TG4

DC110V/AC220V

1000W

E40

Steel

IP56

82kg

CTG3

DC110V/AC220V

1000W

E40

Steel

IP56

47.5kg

CTG4

DC110V/AC220V

1000W

E40

Steel

IP56

82kg

TG14

DC110V/AC220V

1000W

E40

Steel

IP56

24.5kg

Marine Oblique Spot Light

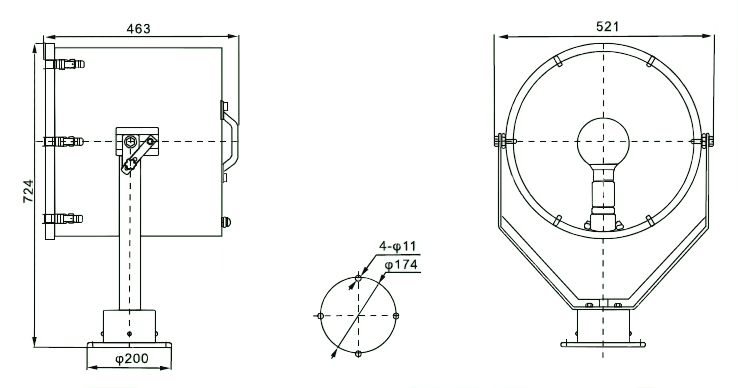

Sketch of Marine Oblique Spot Light TG14

Marine Oblique Spot Light

Marine Oblique Spot Light TG3

Marine Oblique Spot Light

Marine Oblique Spot Light CTG3
