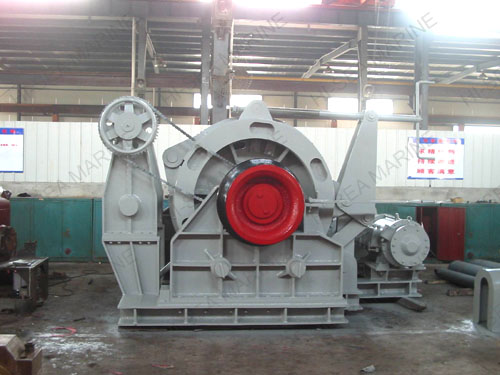

Marine Electric Winch

Marine Electric Winch have a rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanisms for brakes and cluthes are desgined for easy and safe manual operation, but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable, and all transferred of external forces to the deck construction is via the foundation bolts. No special welded steel constructions, more flexible for variations mooring winch may occur. This arrangement also has the benefit of making transportation of the winches simpler and less expensive. The manual cluth operating is with spindles for winches for winches from 16 tonnes pulling power and upwards. The winch design provides easy access to all points for lubrication and inspection. Gear may be delivered as open type with steel protection cover, or as totally enclosed gears with oil bath.

Main techinical specification

Rated Pull(kN)

Rated Speed(m/min)

Drum Capacity(m)

Motor Power(kW)

10

¡Ý12

§¶10§ç150

5.5

20

¡Ý12

§¶15§ç150

11

30

¡Ý15

§¶17§ç150

15

40

¡Ý15

§¶18§ç150

22

50

¡Ý15

§¶20.5§ç150

30

75

¡Ý15

§¶26§ç200

45

80

¡Ý15

§¶26§ç200

45

100

¡Ý15

§¶30§ç200

45

125

¡Ý15

§¶30§ç200

75

160

¡Ý15

§¶32§ç250

75

200

¡Ý9.6

§¶41§ç250

75

250

¡Ý9.6

§¶44.5§ç250

90

315

¡Ý7.8

§¶52§ç250

90

400

¡Ý7.8

§¶56§ç250

110

450

¡Ý7.8

§¶56§ç250

110

500

¡Ý7.8

§¶58§ç250

110

560

¡Ý6

§¶64§ç250

132

600

¡Ý6

§¶64§ç250

132

650

¡Ý6

§¶70§ç250

132

1000

¡Ý4

§¶85§ç250

132

1200

¡Ý4

§¶95§ç250

160

1500

¡Ý4

§¶95§ç250

200

1800

¡Ý4

§¶95§ç250

250

2000

¡Ý4

§¶100§ç250

270
