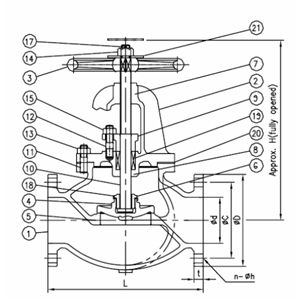

Marine Cast Iron Globe Valve JIS F7309 16K
| Size | L | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 50 | 220 | 155 | 120 | 8-19 | 20 | 285 | 19.6 |
| 65 | 270 | 175 | 140 | 8-19 | 22 | 310 | 28.3 |
| 80 | 300 | 200 | 160 | 8-23 | 24 | 340 | 40.4 |
| 100 | 350 | 225 | 185 | 8-23 | 26 | 385 | 56.9 |
| 125 | 430 | 270 | 225 | 8-25 | 26 | 455 | 89.5 |
| 150 | 500 | 305 | 260 | 12-25 | 28 | 510 | 123.0 |
| 200 | 570 | 350 | 305 | 12-25 | 30 | 630 | 188.0 |
