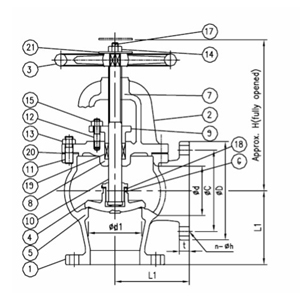

Marine Cast Iron Angle Valve JIS F7310 16K
| Size | L1 | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 50 | 120 | 155 | 120 | 8-D19 | 20 | 255 | 18.0 |
| 65 | 130 | 175 | 140 | 8-D19 | 22 | 270 | 25.0 |
| 80 | 150 | 200 | 160 | 8-D23 | 24 | 295 | 35.7 |
| 100 | 170 | 225 | 185 | 8-D23 | 26 | 330 | 49.2 |
| 125 | 200 | 270 | 225 | 8-D25 | 26 | 390 | 76.1 |
| 150 | 225 | 305 | 260 | 12-D25 | 28 | 435 | 103.0 |
| 200 | 250 | 350 | 305 | 12-D25 | 30 | 540 | 155.0 |
