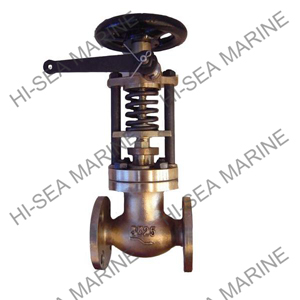

Marine Bronze Emergency Shut-Off Valve JIS F7399[Search Related Products]
Marine Bronze Fuel Oil Tank Emergency Shut-off Valve JIS F7399
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 5K15 | 15 | 120 | 80 | 60 | 4 | 12 | 10 | 268 | 120 |
| 5K20 | 2 | 120 | 85 | 65 | 4 | 12 | 10 | 268 | 120 |
| 5K25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 268 | 120 |
| 5K40 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 302 | 140 |
| 5K65 | 65 | 270 | 155 | 130 | 4 | 15 | 18 | 391 | 180 |
| 5K80 | 80 | 300 | 180 | 145 | 4 | 19 | 18 | 416 | 180 |
| 10K15 | 15 | 120 | 95 | 70 | 4 | 15 | 12 | 268 | 120 |
| 10K20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 268 | 120 |
| 10K25 | 25 | 120 | 120 | 90 | 4 | 19 | 14 | 268 | 120 |
| 10K40 | 40 | 160 | 140 | 105 | 4 | 19 | 16 | 302 | 140 |
