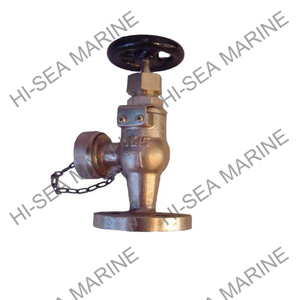

Marine Bronze Angle Hose Valve JIS F7334 5K/10K[Search Related Products]
Marine Bronze Globe Hose Valve JIS F7334B 5K/10K (DN15,DN25)
| Code | Size | L | L1 | Flange diam. (D) | Pitch (C) | Hole (nxd) | Weight |
| กก | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 751706 | 5K15 | 68 | 55 | 80 | 60 | 4XD12 | 2.41 |
| 751707 | 10K15 | 73 | 70 | 95 | 70 | 4XD15 | 2.72 |
| 751708 | 5K25 | 78 | 65 | 95 | 75 | 4XD12 | 3.44 |
| 751709 | 10K25 | 83 | 70 | 125 | 90 | 4XD19 | 4.04 |
