Our company can supply various specifications of sacrificial anodes to meet customers different requirements for the cathodic protection system.

Classification and Application of Sacrificial Anodes:
1.Magnesium Alloy Sacrificial Anode
Magnesium alloy sacrificial anode is suitable for the anti-corrosion protection of oil, gas, water supply and drainage pipelines in underground fresh water, underground cables, chemical industry, communication, harbor, ship, reservoir and other projects.

2.Aluminum Alloy Sacrificial Anode
Aluminum-Zinc-Indium alloy sacrificial anode is suitable for the metal cathodic protection of ships, mechanical equipment, ballast water tank, tank inner wall, coastal facilities, submarine pipeline, wharf steel pile, offshore platform and others in seawater medium.

3.Zinc Alloy Sacrificial Anode
Zinc-Aluminum-Cadmium Sacrificial anodes are suitable for the cathodic protection of ships, mechanical equipment, offshore engineering and harbor facilities in fresh water or seawater medium and the pipelines and cables in low resistivity soils.

4.Impressed Current High Silicon Cast Iron Anode
High silicon cast iron anodes are widely used for cathodic protection of external electric current in offshore oil drilling platforms, underground pipelines, and the underground cable facilities.


D Type Magnesium Anode Specifications

Type

Weight kg(ib)

Magnesium Sacrificial Anode mm(inch)

A

B

C

9D2

4.082(9)

69.9(2 3/4)

549.3(21 5/8)

76.2(3)

14D2

6.350(14)

69.9(2 3/4)

850.9(33 1/2)

76.2(3)

20D2

9.072(20)

69.9(2 3/4)

1212.9(47 3/4)

76.2(3)

9D3

4.082(9)

88.9(3 1/2)

352.4(13 7/8)

95.3(3 3/4)

17D3

7.711(17)

88.9(3 1/2)

641.4(25 1/4)

95.3(3 3/4)

32D5

14.515(32)

139.7(5 1/2)

504.8(19 7/8)

146.1(5 3/4)

48D5

21.772(48)

139.7(5 1/2)

765.2(30 1/8)

146.1(5 3/4)

60D4

27.216(60)

114.3(4 1/2)

114.3(4 1/2)

1460.5(57 1/2)


Aluminum Anode for Storage Tank

Type

Specification/mm

Weight (kg)

A(B1+B2)C

AC-1

750(115+135)130

35.0

AC-2

500(115+135)130

23.0

AC-3

500(105+135)100

16.0

AC-4

300(105+135)100

10.0


Aluminum Anode for Harbor and Marine Engineering Facilities

Type

Specification mm

Weight kg

A(B1+B2)C

AI-1

2300(220+240)230

310.0

AI-2

1600(200+210)220

190.0

AI-3

1500(170+200)180

130.0

AI-4

900(150+170)160

58.0

AI-5

1500(148+178)170

120.0

AI-6

850(180+220)180

85.0

AI-7

800(200+280)150

60.0

AI-8

700(160+220)180

72.5

AI-9

1250(115+135)130

56.0

AI-10

1000(115+135)130

46.0

AI-11

750(115+135)130

35.0

AI-12

500(115+135)130

23.0


Aluminum Anode for Ballast Water Tank

Type

Specification mm

Weight kg

A(B1+B2)C

AT-1

500(115+135)130

23.0

AT-2

1500(65+75)70

21.5

AT-3

500(110+130)120

20.0

AT-4

1000(58.5+78.5)68

13.2

AT-5

800(56+74)65

10.0

AT-9

1150(48+54)51

9.0

AT-7

250(80+100)85

5.0

AT-8

200(70+90)70

3.0


Common Aluminum Anode for Seawater Cooling System

Type

Specification mm

Weight kg

A(B1+B2)C

AE-1

1200(200+280)150

120.0

AE-2

800(200+280)150

80.0

AE-3

1000(115+135)130

46.0

AE-4

500(115+135)130

23.0

AE-5

1000(80+100)80

20.0

AE-6

500(105+135)100

16.0

AE-7

500(80+100)80

10.0

AE-8

400(110+120)50

7.0

AE-9

300(140+160)40

5.0

AE-10

200(90+110)40

3.0

AE-11

30050 Disc Shape

11.5

AE-12

36040 Disc Shape

9.0

AE-13

30040 Disc Shape

7.5

AE-14

20050 Disc Shape

4.0

AE-15

18050 Disc Shape

3.5

AE-16

120100 Disc Shape

2.5


Aluminum Anode for Ship Hull

Type

Specification mm

Weight kg

ABC

AH-1

80014060

17.0

AH-2

80014050

15.0

AH-3

80014040

12.0

AH-4

60012050

10.0

AH-5

40012050

6.5

AH-6

50010040

5.5

AH-7

40010040

4.5

AH-8

30010040

3.5

AH-9

25010040

2.5

AH-10

1807035

1.2

AH-11

30015050 Double Iron Feet

5.8

AH-12

30015040 Double Iron Feet

4.6

AH-13

30015050 Bolt Type

5.8

AH-14

30015040 Bolt Type

4.8


Welding Type Zinc Anode for Ship Hull (Single Iron Foot)

Type

Specification

(mm)

Iron Foot Size (mm)

Net Weight

(kg)

Gross Weight

(kg)

ABC

D

E

F

G

ZH-1

80014060

900

45

5~6

8~10

45.4

47.0

ZH-2

80014050

900

45

5~6

6~8

37.4

39.0

ZH-3

80014040

900

45

5~6

5~6

29.5

31.0

ZH-4

60012050

700

40

5~6

6~8

24.0

25.0

ZH-5

40012050

470

35

4~5

6~8

15.3

16.0

ZH-6

50010040

580

40

4~5

5~6

12.7

13.6

ZH-7

40010040

460

30

4~5

5~6

10.6

11.0

ZH-8

30010040

360

30

3~4

5~6

7.2

7.5

ZH-9

25010040

310

30

3~4

5~6

6.2

6.5

ZH-10

1807040

230

25

3~4

5~6

3.3

3.5


Welding Type Zinc Anode for Ship Hull (Double Iron Feet)

Type

Specification

(mm)

Iron Foot Size

(mm)

Net Weight

(kg)

Gross Weight

(kg)

ABC

D

E

F

G

ZH-11

30015050

360

30

4~5

5~6

13.7

14.5

ZH-12

30015040

360

30

4~5

5~6

10.7

11.5


Bolt Connection Type Zinc Anode for Ship Hull

Type

Specification

(mm)

Iron Foot Size (mm)

Net Weight

(kg)

Gross Weight

(kg)

ABC

D

E

F

G

ZH-13

30015050

250

50

3~4

8~10

11.6

12.0

ZH-14

30015040

250

50

3~4

8~10

8.6

9.0




Marine Anode

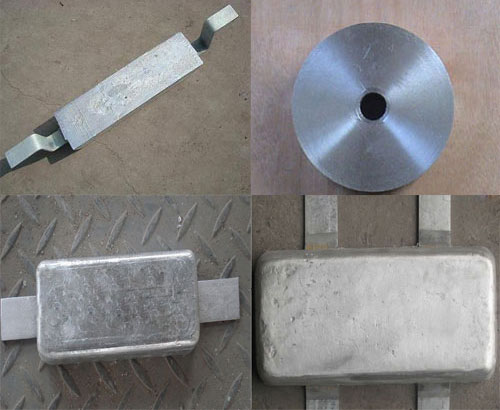

Aluminum Alloy Sacrificial Anode


Marine Anode

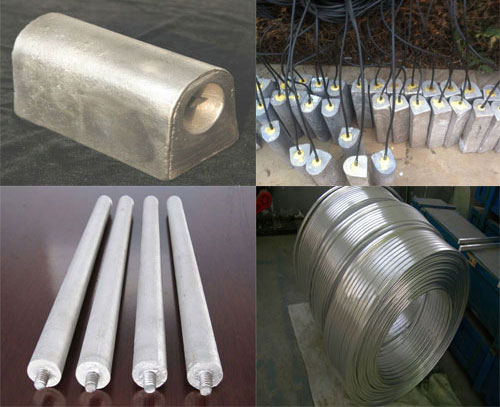

Magnesium Alloy Sacrificial Anode


Marine Anode

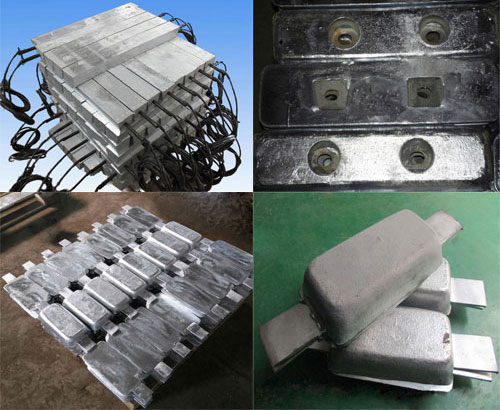

Zinc Alloy Sacrificial Anode
