Ladder for Draft Reading[Search Related Products]

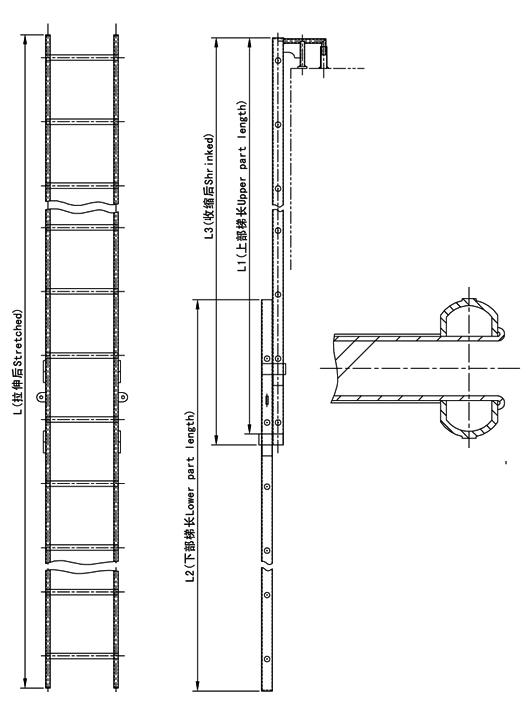

Draft Ladder (Standard CBM2049-82,new standard CB/T3986-2008) is a special ladder used for reading ship draft. And the surface of aluminium is to be anodized. CCS, BV, NK, LR, GL, ABS, DNV, RINA, PRS, HR etc certificate can be supplied.
| Maximum Extended Length | Upper part Length | Lower Part Length | Minimum Reduced Length | Step Qty | Weight(kg) |
| L | L1 | L2 | L3 | n | |
| 4470 | 2640 | 2540 | 2685 | 14 | 21 |
| 5690 | 3250 | 3150 | 3290 | 18 | 25 |
| 6910 | 3860 | 3760 | 3905 | 22 | 29 |
| 8130 | 4470 | 4370 | 4515 | 26 | 33 |
