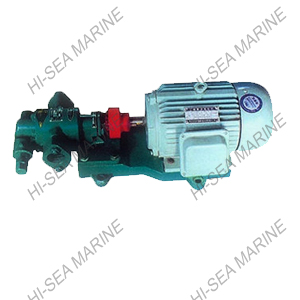

KCB Series Marine Oil Gear Pump[Search Related Products]
Main Technical Parameter
| Series Name | KCB | ||||
| Product Name | Marine Gear Oil Pump | ||||
| Feature | Designed with safty valve for protection against overload, All of pump's parts can be lubricated by delivered medium when working. | ||||
| Model | Capacity m3/h | NPSH m | Speed r/min | Motor power kw | Discharge pressure Mpa |
| HS-KCB-18.3 | 1.1 | 5 | 1400 | 1.5 | 1.45 |
| HS-KCB-55 | 3.3 | 7 | 1400 | 1.5 | 0.33 |
| HS-KCB-83.3 | 5 | 7 | 1420 | 2.2 | 0.33 |
| HS-KCB-135 | 8 | 5 | 940 | 2.2 | 0.33 |
| HS-KCB-200 | 12 | 5 | 1440 | 4 | 0.33 |
| HS-KCB-300 | 18 | 5 | 960 | 5.5 | 0.36 |
| HS-KCB-483.3 | 29 | 5.5 | 1440 | 7.5 | 0.36 |
| HS-KCB-633 | 38 | 6 | 970 | 11 | 0.28 |
| HS-KCB-960 | 58 | 6.5 | 1470 | 18.5 | 0.28 |
| HS-KCB-1200 | 72 | 7 | 740 | 37 | 0.6 |
| HS-KCB-1600 | 95 | 7 | 980 | 45 | 0.6 |
| HS-KCB-1800 | 110 | 7.5 | 740 | 55 | 0.6 |
| HS-KCB-2500 | 170 | 7.5 | 980 | 75 | 0.6 |
| Application |
It can give performance as transfer pump or booster pump in oil delivery system.It can be also applied as a fuel pump for dilivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump | ||||
| Medium tempreture | Max.80℃ | ||||
| Certification | CCS, BV etc. | ||||
