JQ/CS 49 Type Stern Tube Shaft Sealing Arrangement[Search Related Products]

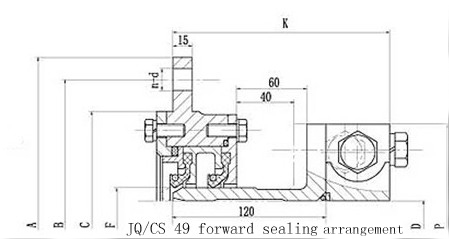

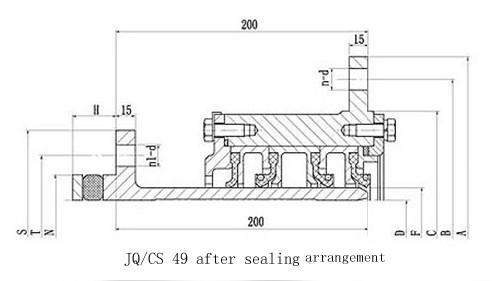

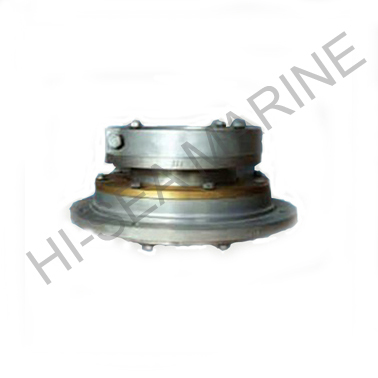

JQ/CS 49 Type Stern Tube Shaft Sealing Arrangement

unit: mm

Model	D	A	B	C	F	H	K	N	P	S	T	n	d	n1	Weight (kg)
Model	D	A	B	C	F	H	K	N	P	S	T	n	d	n1	Front	Back
130JQ/CS49	130	320	290	250	145	28	140	160	215	230	200	8	11	8	26	38
150JQ/CS49	150	345	310	270	165	28	145	180	235	250	220	8	11	8	29	42
170JQ/CS49	170	366	336	292	185	28	150	200	260	270	240	12	13	8	34	46
190JQ/CS49	190	390	360	320	205	28	160	220	290	295	260	12	13	8	40	53
210JQ/CS49	210	410	380	335	225	32	160	246	310	320	280	16	13	12	45	59
230JQ/CS49	230	445	410	370	245	32	170	266	350	340	300	16	15	12	53	66
250JQ/CS49	250	475	440	390	270	34	175	290	370	360	326	16	17	12	60	73
280JQ/CS49	280	505	470	420	300	34	180	320	400	390	356	16	17	12	68	82
320JQ/CS49	320	550	510	460	340	34	180	360	440	430	390	16	22	12	76	90
360JQ/CS49	360	590	550	500	380	36	180	405	480	470	430	16	22	12	84	98
