JQ/CS 48A Type Stern Tube Shaft Sealing Arrangement[Search Related Products]

JQ/CS 48A Type Stern Tube Shaft Sealing Arrangement

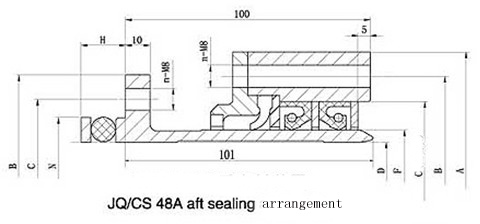

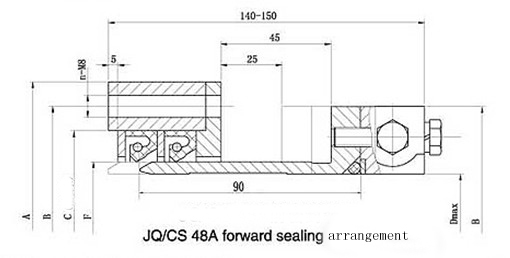

JQ/CS 48A Type Stern Tube Shaft Sealing Arrangement

unit: mm

Specification	D	A	B	C	F	H	N	n	Weight (kg)
Specification	D	A	B	C	F	H	N	n	Front	Back
45	38	110	90	70	45	12	50	4	4.5	5
50	43	115	95	75	50	12	55	4	4.8	5.3
55	48	120	100	80	55	12	60	4	5.2	5.7
60	52	125	105	85	60	12	65	4	5.6	6.1
65	57	130	110	90	65	12	70	6	6.0	6.5
70	60	135	115	95	70	12	75	6	6.4	7.0
75	67	140	120	100	75	12	80	6	6.8	7.5
80	70	145	125	105	80	17	90	6	7.3	8.1
85	75	150	130	110	85	17	95	6	7.8	8.8
90	80	155	135	115	90	17	100	6	8.5	9.8
95	85	160	140	120	95	17	105	8	9.2	11
100	90	165	145	125	100	17	110	8	9.9	12.5
10.5	95	170	150	130	105	17	115	8	10.8	14
110	100	175	155	135	110	17	120	8	12	15.5
