Home Marine Power & Propulsion Equipment Stern Tube Sealing Appatatus JQ/CS 39 Type Stern Tube Shaft Sealing Apparatus

JQ/CS 39 Type Stern Tube Shaft Sealing Apparatus[Search Related Products]

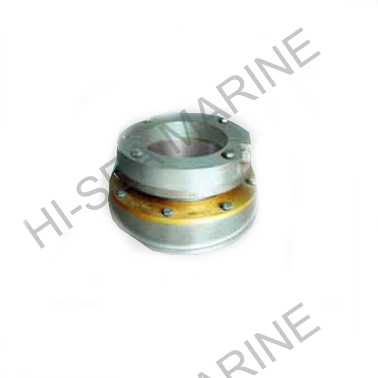

JQ/CS 39 Type Stern Tube Shaft Sealing Apparatus

JQ/CS 39 Type Stern Tube Shaft Sealing Apparatus

JQ/CS 39 Type Stern Tube Shaft Sealing Apparatus

unit: mm

Model	D	A	B	C	E	H	K	T	N	P	S	n	F	Weight (kg)
Model	D	A	B	C	E	H	K	T	N	P	S	n	F	Front	Back
70JQ/CS39	70	176	150	122	110	17.5	144	116	90	130	145	6	80	9	10.5
80JQ/CS39	80	185	160	132	120	17.5	146	126	100	140	155	6	90	10.2	11.8
90JQ/CS39	90	195	170	142	130	17.5	148	136	110	150	165	8	100	11.5	13.5
100JQ/CS39	100	205	180	152	140	175	150	146	120	160	175	8	110	13	16
110JQ/CS39	110	220	190	162	150	17.5	150	156	130	170	185	8	120	15	19
120JQ/CS39	120	235	200	172	160	20	152	166	145	180	195	8	130	17.8	22.5
