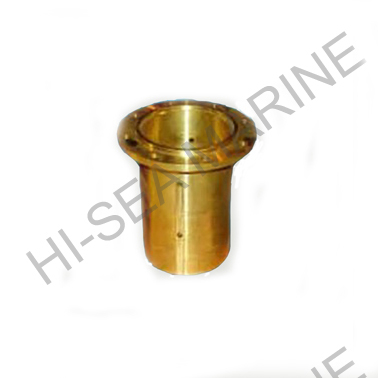

JQ/CS 39 Type Stern Shaft Bearing[Search Related Products]

JQ/CS 39 Type Stern Shaft Bearing

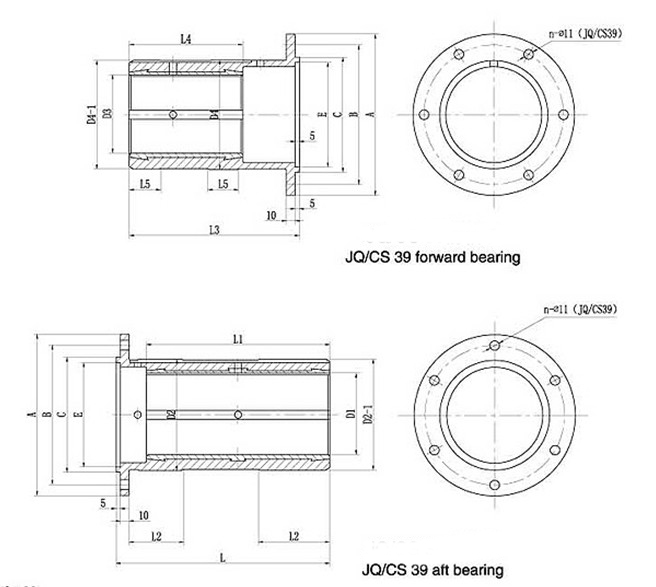

unit: mm

Model	D1	D2	D3	D4	L	L1	L2	L3	L4	L5	n	Weight (kg)
Model	D1	D2	D3	D4	L	L1	L2	L3	L4	L5	n	Front	Back
70JQ/CS39	80	118	78	116	220	185	50	175	110	30	6	7	10
80JQ/CS39	90	128	88	126	245	210	60	195	130	35	6	8.3	12
90JQ/CS39	100	138	98	136	275	240	70	215	150	40	8	10	15
100JQ/CS39	110	148	108	146	295	260	80	235	170	40	8	11.5	18
110JQ/CS39	120	158	118	156	315	280	90	245	180	45	8	13.7	21
120JQ/CS39	130	168	128	166	345	31	90	265	200	50	8	15	25
