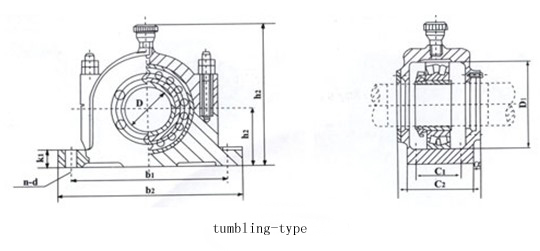

Inland Water Vessel Shafting Intermediate Bearing JT4175-86(C type)
Intermediate Bearing[Search Related Products]

| Type | Bearing Symbol | Dimensions (mm) | Weight (kg) | ||||||||||
| D | D1 | h1 | h2 | h3 | b1 | b2 | C1 | C2 | n-d | ||||
| C | 70 | 13514 | 70 | 140 | 30 | 95 | 224 | 270 | 310 | 70 | 128 | 4-21 | 19 |
| 80 | 13516 | 80 | 160 | 30 | 105 | 243 | 290 | 330 | 80 | 138 | 4-21 | 26 | |
| 90 | 13518 | 90 | 180 | 35 | 120 | 270 | 320 | 360 | 90 | 148 | 4-21 | 30 | |
| 100 | 13520 | 100 | 200 | 35 | 130 | 190 | 350 | 390 | 100 | 158 | 4-21 | 38 | |
| 110 | 13522 | 110 | 215 | 40 | 137.5 | 310 | 370 | 420 | 110 | 178 | 4-25 | 46 | |
| 125 | 13525 | 125 | 250 | 45 | 165 | 360 | 420 | 470 | 130 | 198 | 4-25 | 59 | |
