Home Marine Power & Propulsion Equipment Marine Bearings Inland Water Vessel Shafting Intermediate Bearing JT4175-86(A type)

Inland Water Vessel Shafting Intermediate Bearing [Search Related Products]

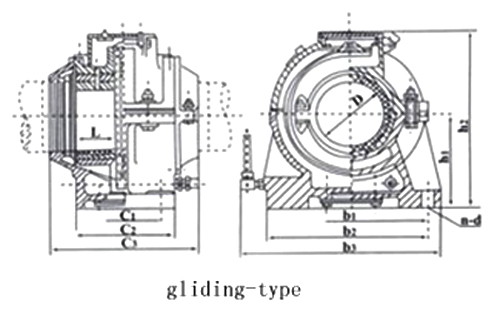

Type		Dimensions (mm)												Weight (kg)
Type		D	L	C₁	C₂	C₃	b₁	b₂	b₃	h₁	h₂	D₂	n-d	Weight (kg)
A A (a)	140	140	77	150	210	344	360	420	478	229	450	15	4-25	115
	160	160	88	171	231	365	396	456	514	240	472	15	4-25	119
	180	180	88	183	253	387	410	480	538	252	494	15	4-32	151
	200	200	110	205	273	407	440	510	568	280	529	15	4-32	160
	210	210	115	215	285	495	445	515	585	288	547	15	4-32	162
	220	220	121	227	293	431	466	536	594	285	555	15	4-32	207
