Inland Water Vessel intermediate Shaft Bearing [Search Related Products]
Marine sliding type shafting intermediate shaft bearing is designed and manufactured according to GB/T14364-93 standard,
which widely applied in the intermediate bearing of new build export marine propellers.
Scope of application
linear velocity 1.5~8 m/s
unit pressure ¡Ü0.6 Mpa
lubricating oil temperature 65 0C
cooling water amount 0.5~7 t/h

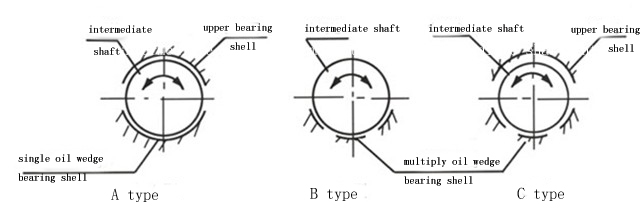

| Type | Structural style | Shaft diameter | Parameter for design |
| A | Single oil wedge sliding type with upper bearing shell | 80~220 | For the intermediate shaft bearing of minimal ship which close to stern tube or after compute which have load pressure |
| B | Multiply oil wedge sliding type | 250~800 | For the intermediate shaft bearing of large ship |
| C | Multiply oil wedge sliding type with upper bearing shell | 250~800 | For the intermediate shaft bearing of large ship which close to stern tube or after compute which have load pressure |
