Hydraulic windlass

Hydraulic windlass:

Whatever your anchor application, Hi-Sea Marine's line of anchor windlass offers a variety of styles and sizes to handle it. Our anchor windlass winches are designed for up to 160mm chain with a range of drive options available. Standard features include fabricated steel construction, gears hardened to exceed working load requirements, cluthed and braked drum and corrosion resistance. Electric or hydraulic drives are available along with warping heads. We can modify windlasses to suit your application and special operation requirements.

Hi-Sea Marine's anchor windlass winches have rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanism for brake and cluthes are designed for easy and safe manual operating, but may also be remotely operating by hydraulic cylinders. The brakes are easily adjustable, and all transfer of external forces to the deck construction is by the foundation bolts. The winch design provides easy access to all points for lubrication and inspections.

Certificates: CCS, DNV, ABS, GL, LR, BV, RINA, NK, KR, etc

Power supply: Electric, Hydraulic, Diesel, Electric combined hydraulic, Diesel combined hydraulic type.


Main Technical Specification(Electric combined anchor mooring winch)

Chain Dia.(mm)

Working Load(kN)

Working Speed(m/min)

Mooring Pull(kN)

Mooring Speed(m/min)

Drum Capacity(m)

Motor Power(kW)

14/16/17.5

8.3/10.9/13.0

9

8

12

11100

4.3/1.7

19/20.5/22

15.3/17.9/20.6

9

15

12

13120

8.5/3.5

24/26

24.5/28.7

9

20

12

15120

8.5/3.5

28/30

33.3/38.3

9

30

12

18150

11/11/7.5

32/34/36

43.5/49.1/55.1

9

40

12

20.5150

16/16/11

38/40/42

61.4/68.0/75.0

9

50

12

20.5150

22/22/16

44/46/48

82.3/89.9/97.9

9

60

12

26200

30/30/22

50/52/54

106.3/114.9/123.9

9

60

15

26200

30/30/22

56/58/60

133.3/143.0/153.0

9

80

15

26200

45/45/30

62/64

163.4/174.1

9

80

15

30200

45/45/30

66/68

185.1/196.5

9

100

15

30200

45/45/30

70/73

208.3/226.5

9

120

15

32.5200

60/60/45

76/78

245.5/258.6

9

125

15

32.5200

60/60/45

81/84

311.7/335.2

9

140

15

36200

75/75/36

78/90

359.5/384.8

9

150

15

38200

75/75/36

92/95

402.0/428.7

9

200

15

40200

85/85/64

97/100

446.9/475.0

9

250

15

42200

100/100/50

105/107

523.7/543.8

9

300

15

44200

110/110/55

112/114

595.8/617.3

9

350

15

48200

132/132/66

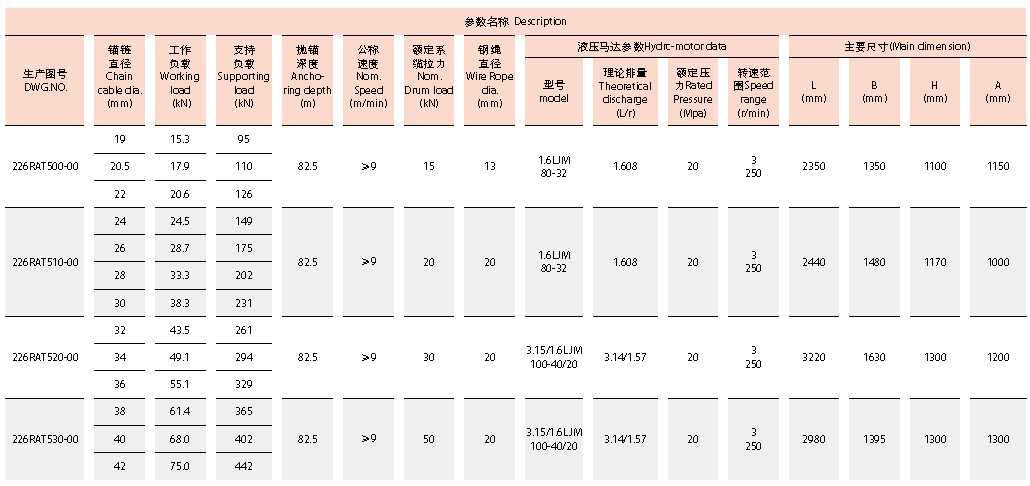

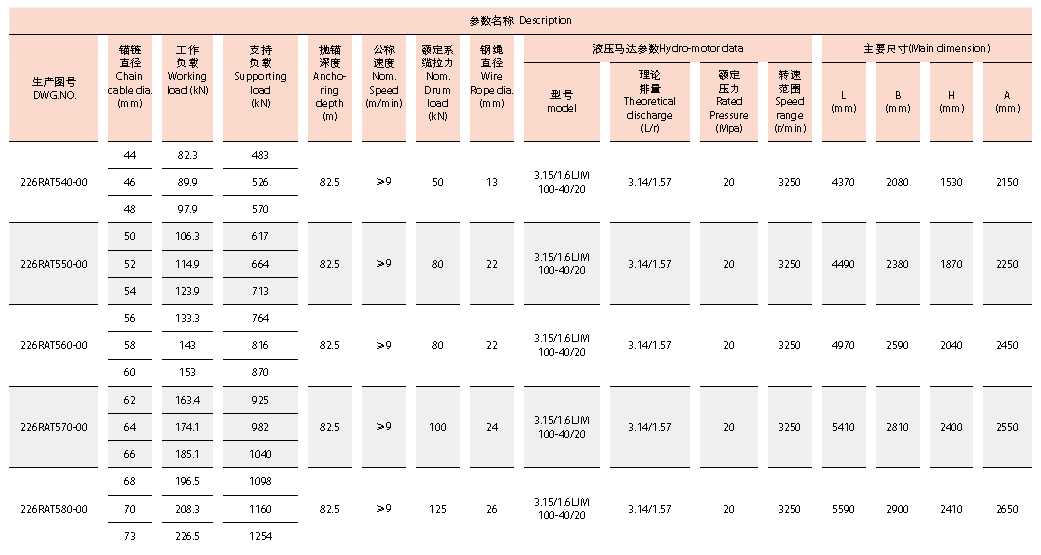

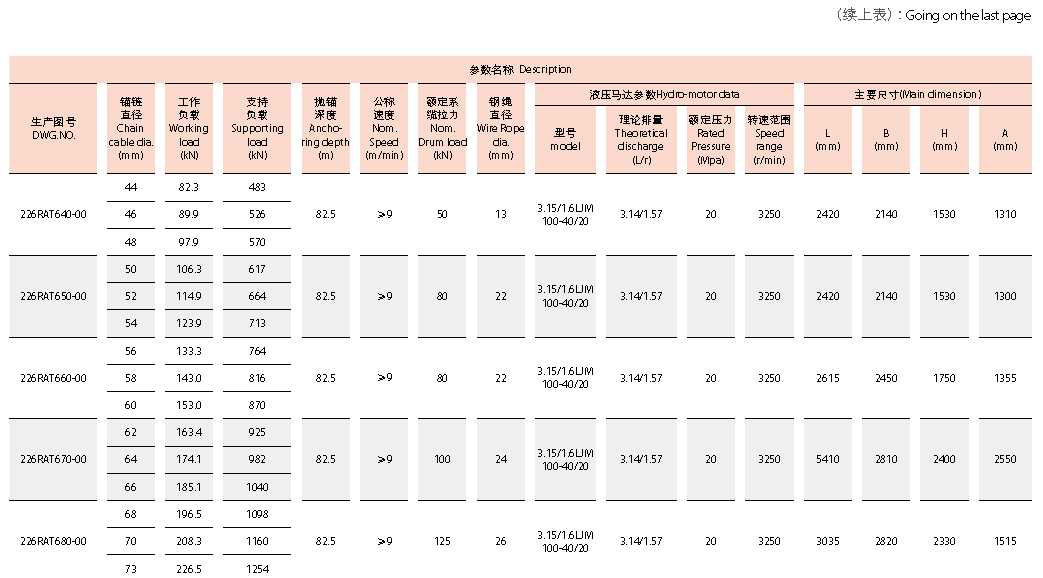

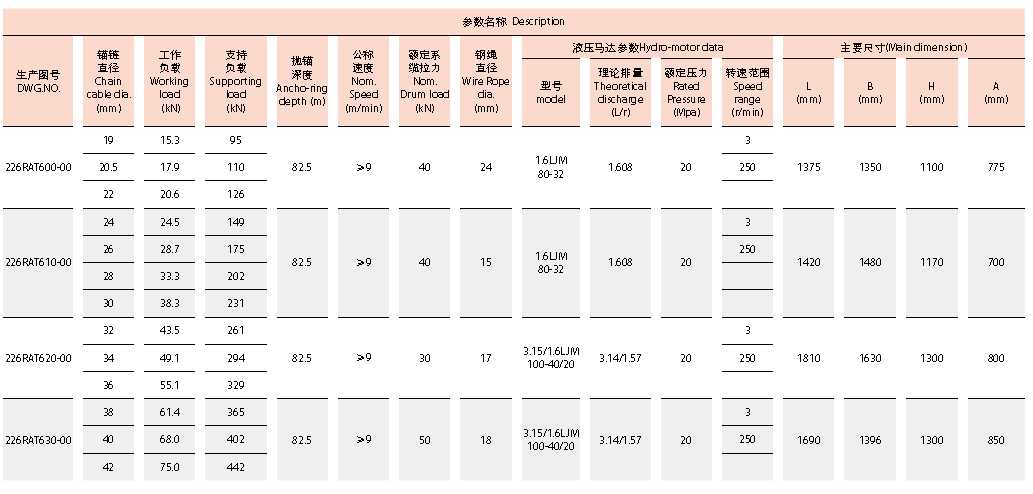

Main Technical Specification(Hydraulic windlass)

Chain Dia.(mm)

Working Load(kN)

Supporting Load(kN)

Working Speed(m/min)

Warping Load(kN)

Motor Power(kW)

14/16/17.5

8.3/10.9/13.0

51/67/80

9

8

5.5

19/20.5/22

15.3/17.9/20.6

95/110/126

9

10

7.5

24/26

24.5/28.7

149/175

9

20

11

28/30

33.3/38.3

202/231

9

30

15

32/34/36

43.5/49.1/55.1

261/294/329

9

30

22

38/40/42

61.4/68.0/75.0

365/402/442

9

40

30

44/46/48

82.3/89.9/97.9

483/526/570

9

50

37

50/52/54

106.3/114.9/123.9

617/664/713

9

50

45

56/58/60

133.3/143.0/153

764/816/870

9

60

55

62/64

163.4/174.1

925/982

9

80

55

66/68

185.1/196.5

1040/1098

9

100

75

70/73

208.3/226.5

1160/1254

9

100

75

76/78

245.5/258.6

1350/1416

9

125

90

81/84

311.7/335.2

2171/2320

9

140

110

87/90

359.5/384.8

2473/2629

9

150

120

92/95

402.0/428.7

2735/2898

9

200

130

97/100

446.9/475.0

2995/3162

9

250

150

05/107

523.7/543.8

3612/3750

9

300

180

112/114

595.8/617.3

4109/4228

9

350

200

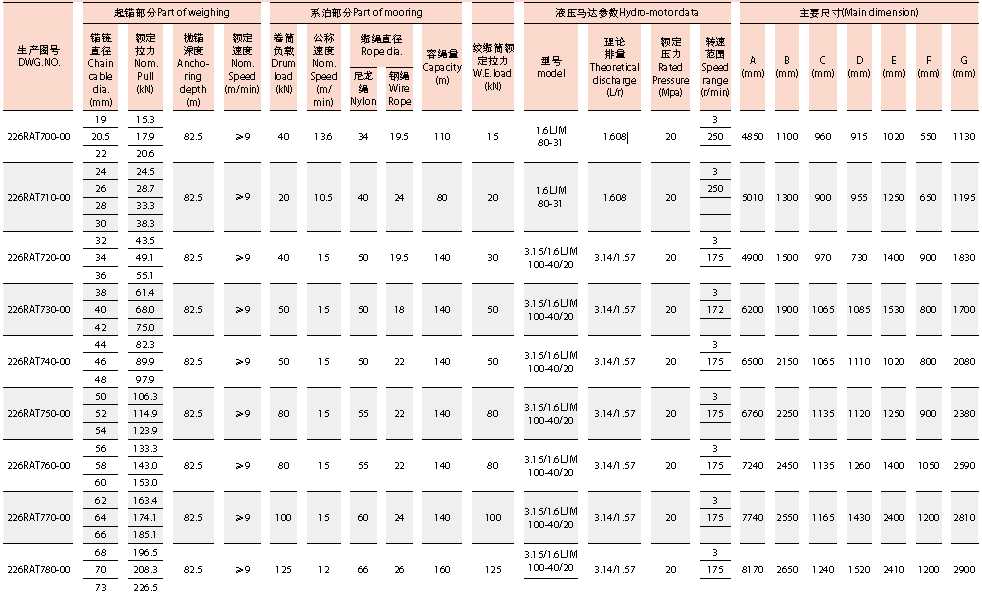

Main Technical Specification(Hyd. anchor mooring winch)

Chain Dia.(mm) Working Load(kN) Working Speed(m/min) Mooring Pull(kN) Mooring Speed(m/min) Drum Capacity(m) Motor Power(kW)
14/16/17.5 8.3/10.9/13.0 9 8 12 11100 5.5
19/20.5/22 15.3/17.9/20.6 9 15 12 13120 7.5
24/26 24.5/28.7 9 20 12 15120 11
28/30 33.3/38.3 9 30 12 18150 15
32/34/36 43.5/49.1/55.1 9 40 12 20.5150 22
38/40/42 61.4/68.0/75.0 9 50 12 20.5150 30
44/46/48 82.3/89.9/97.9 9 60 12 26200 37
50/52/54 106.3/114.9/123.9 9 60 15 26200 45
56/58/60 133.3/143.0/153.0 9 80 15 26200 55
62/64 163.4/174.1 9 80 15 30200 55
66/68 185.1/196.5 9 100 15 30200 75
70/73 208.3/226.5 9 120 15 32.5200 75
76/78 245.5/258.6 9 125 15 32.5200 90
81/84 311.7/335.2 9 140 15 36200 110
78/90 359.5/384.8 9 150 15 38200 120
92/95 402.0/428.7 9 200 15 40200 130
97/100 446.9/475.0 9 250 15 42200 150
105/107 523.7/543.8 9 300 15 44200 180
112/114 595.8/617.3 9 350 15 48200 200


Main Technical Specification(Electric windlass)

Chain Dia.(mm)

Working Load(kN)

Supporting Load(kN)

Working Speed(m/min)

Warping Load(kN)

Motor Power(kW)

12.5

5.9

30

9

5

3/1.2

14/16/17.5

8.3/10.9/13.0

51/67/80

9

8

4.3/1.7

19/20.5/22

15.3/17.9/20.6

95/110/126

9

10

8.5/3.5

24/26

24.5/28.7

149/175

9

20

8.5/3.5

28/30

33.3/38.3

202/231

9

30

11/11/7.5

32/34/36

43.5/49.1/55.1

261/294/329

9

30

16/16/11

38/40/42

61.4/68.0/75.0

365/402/442

9

40

22/22/16

44/46/48

82.3/89.9/97.9

483/526/570

9

50

30/30/22

50/52/54

106.3/114.9/123.9

617/664/713

9

50

30/30/22

56/58/60

133.3/143.0/153

764/816/870

9

60

45/45/30

62/64

163.4/174.1

925/982

9

80

45/45/30

66/68

185.1/196.5

1040/1098

9

100

45/45/30

70/73

208.3/226.5

1160/1254

9

100

60/60/45

76/78

245.5/258.6

1350/1416

9

125

60/60/45

81/84

311.7/335.2

2171/2320

9

140

75/75/36

87/90

359.5/384.8

2473/2629

9

150

75/75/36

92/95

402.0/428.7

2735/2898

9

200

85/85/64

97/100

446.9/475.0

2995/3162

9

250

100/100/50

05/107

523.7/543.8

3612/3750

9

300

110/110/55

112/114

595.8/617.3

4109/4228

9

350

132/132/66
