Hydraulic Steering Gear[Search Related Products]

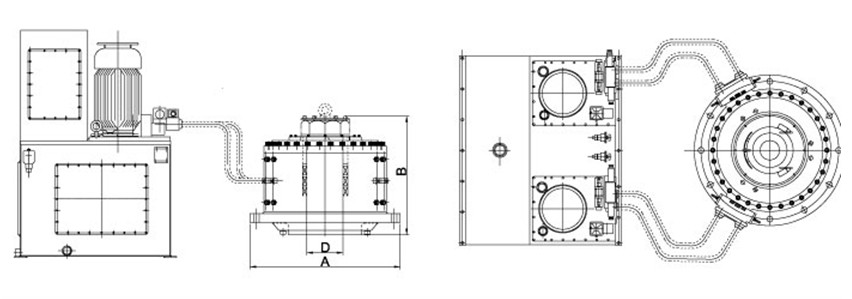

| Rated Torque £¨kN.m£© | Dimensions (mm) | ||
| A | B | D | |
| 25-32 | 400 | 360 | ¡Ü140 |
| 49-63 | 560 | 400 | ¡Ü165 |
| 75-125 | 1050 | 766 | ¡Ü180 |
| 180-200 | 1050 | 866 | ¡Ü250 |
| 250-320 | 1250 | 955 | ¡Ü300 |
| 350-450 | 1350 | 1165 | ¡Ü340 |
| 500-630 | 1350 | 1195 | ¡Ü400 |
| 720-800 | 1600 | 1200 | ¡Ü420 |
| 900-1000 | 1600 | 1350 | ¡Ü450 |

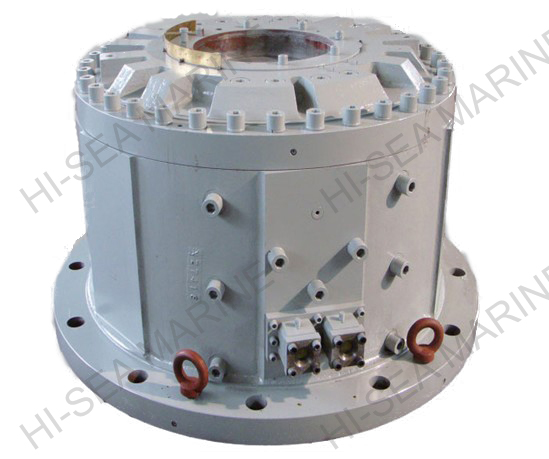

25-1000 KN.m vane type hydraulic steering gear/engine is consist of 1 set vane type rudder thrust mechanism, 2 sets oil motor pump, 1 reserve oil tank.It compact conformation , little plant area, easy installation. The max angle of helm can be 65¡ã,widely used on none jet stream zone marine vessels. Can use electronical control or pump control.It can cooperate with all kinds of automatic steering or follow-up steering device.
