Hydraulic Steering Gear [Search Related Products]

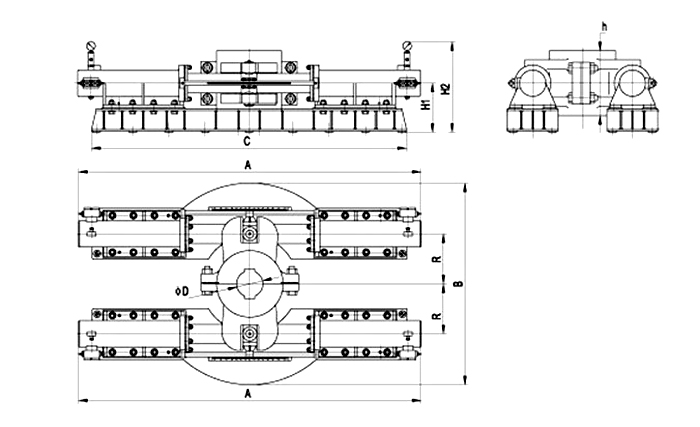

| Rated Torque £¨kN.m£© | Dimensions (mm) | |||||||
| A | B | C | H1 | H2 | H | R | D | |
| 320-400 | 3270 | 1470 | 3030 | 530 | 1010 | 500 | 450 | ¡Ü340 |
| 500-630 | 3610 | 1572 | 3400 | 560 | 1040 | 560 | 500 | ¡Ü420 |
| 700-800 | 3914 | 1740 | 3600 | 560 | 1053 | 740 | 570 | ¡Ü420 |
| 900-1000 | 4300 | 1910 | 3800 | 560 | 1070 | 800 | 600 | ¡Ü450 |

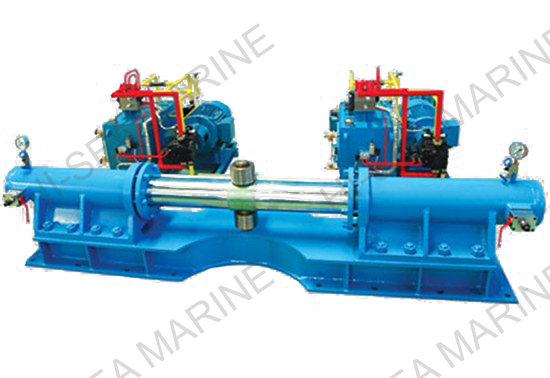

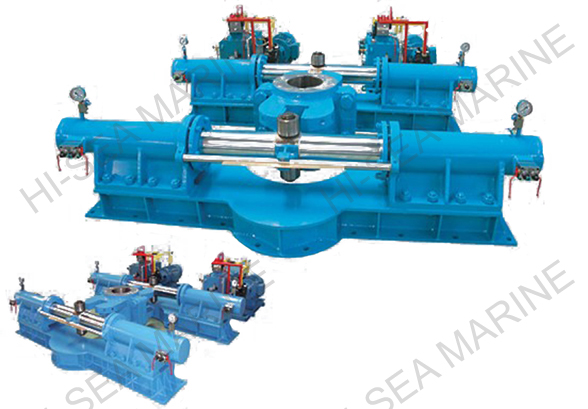

320-1000 KN.m The reciprocating fork type electronic hydraulic steering gear/engine is consist of 2 sets reciprocating fork type rudder thrust mechanism, 2 sets oil motor pump tank, 1 reserve oil tank.Can use electronical control or pump control.It can cooperate with all kinds of automatic steering or follow-up steering device.According to the clients need the 2 steering gear can work together or single work. When one steering gear invalid ,client can separate the invalid one to make sure the steering.It widely used on large sized marine vessels,tankers, liquefied gas carriers,chemical carriers etc which need high safety vessels.
