Hydraulic Steering Gear[Search Related Products]

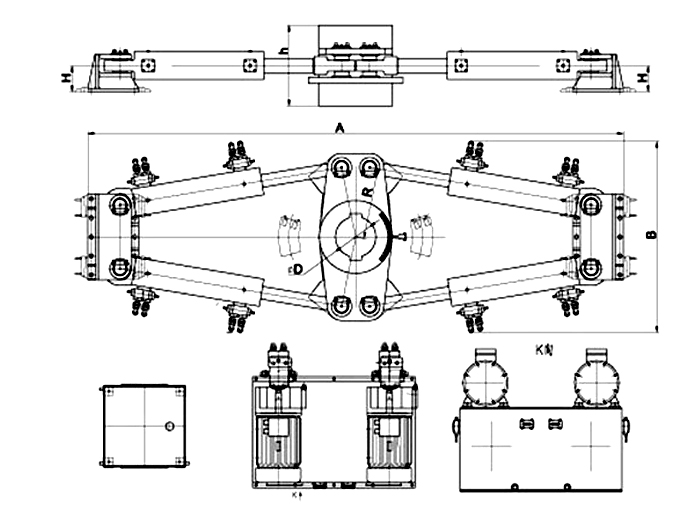

| Rated Torque £¨kN.m£© | Dimensions (mm) | |||||
| A | B | H | R | h | d | |
| 400-650 | 4000 | 1530 | 200 | 650 | 600 | ¡Ü420 |
| 700-900 | 5296 | 1900 | 260 | 700 | 900 | ¡Ü460 |
| 1000 | 5480 | 2000 | 260 | 720 | 1000 | ¡Ü480 |
400-1000 KN.m Oscillating hydraulic type steering gear/engine consist of 1 rudder thrust mechanism made of 4 piston type oil cylinder, 2 sets of oil pump tank, 1 reserve tank, Can use electronical control or pump control.It can cooperate with all kinds of automatic steering or follow-up steering device.According to the clients need the 4 steering gear can work together or work as 2 teams. When one steering gear invalid ,client can separate the invalid one to make sure the steering.It widely used on large sized marine vessels,tankers, liquefied gas carriers,chemical carriers etc which need high safety vessels.
