Horizontal Non-gravity powder mixer
[Search Related Products]
Horizontal Non-gravity powder mixer:
1.Power:4-90kw.
2.Total volume:60-8000L.
3.Specific gravity:less than 3g/cm3.
4.Voltage:380V,50/60HZ.
5.Rotate speed:18-60 rpm.
6.Material:SS.
7.Certification:CE,ISO.
8.Application:Powder.
9.Specification of Horizontal Non-gravity powder mixer:
|
Effective volume(L) |
Motor power(kw) |
Overall size (mm) L¡ÁW¡ÁH |
weight(kg) |
|
60 |
4 |
1124¡Á1110¡Á720 |
260 |
|
150 |
5.5 |
1400¡Á1250¡Á1030 |
450 |
|
300 |
7.5 |
1450¡Á1500¡Á950 |
800 |
|
600 |
11 |
1800¡Á1800¡Á1350 |
1150 |
|
1000 |
15 |
1850¡Á1950¡Á1180 |
1500 |
|
1200 |
15 |
2200¡Á2400¡Á1600 |
2800 |
|
1500 |
18.5 |
2300¡Á2300¡Á1620 |
4200 |
|
2000 |
22 |
2680¡Á2400¡Á1850 |
4500 |
|
2500 |
30 |
2950¡Á3050¡Á2040 |
6000 |
|
3500 |
37 |
3050¡Á3150¡Á2100 |
7000 |
|
4200 |
45 |
3210¡Á3250¡Á2200 |
8000 |
|
5500 |
55 |
3550¡Á3350¡Á2400 |
9500 |
|
6000 |
75 |
4695¡Á3580¡Á2500 |
10600 |
|
8000 |
90 |
4880¡Á3960¡Á2650 |
11500 |

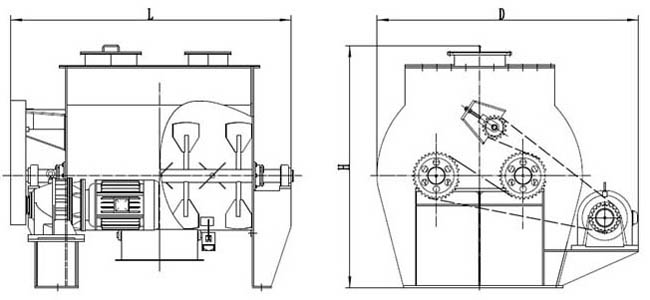

10.Drawing of Horizontal Non-gravity powder mixer£º
