Grade R5 Offshore Mooring Chain

[Search Related Products]

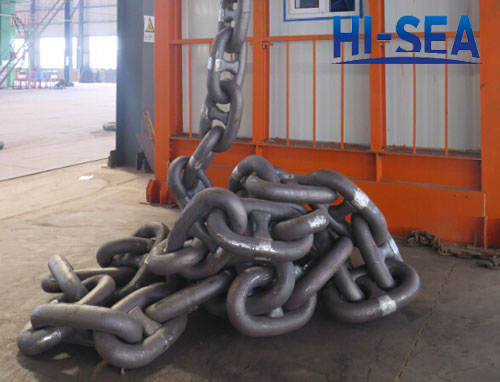

Grade R5 Offshore Mooring Chain

Grade R5 Offshore Mooring Chain

1. Type: Offshore Mooring Chain

2. Grade: R5

3. Chain Diameter: R5-84mm

4. Technics: Welding, Heat Treatment Process

5. Application: Semi-submersible drilling platform used in deep sea etc.

6. Material: R5 grade mooring chain steel

7. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.

8. Available Customized Service

Features of R5 Offshore Mooring Chain

1. Specific Characteristics: Ultra High Strength, Super High Toughness and Low Yield Ratio;

2. Strong Wind Resistance;

3. Can Work under Severe Environment in Deep Water;

4. Long Service Life

5. High Impact Absorption Capacity

Mechanical Properties of R5 Mooring Chain

Grade

Yield Point (N/mm²,min)

Tensile Strength

(N/mm²,min)

Elongation

(%,min)

Reduction of Area

(%,min)

Impact Test(V-notch )

Test Temperature

(íŠ)

Impact (J,min)

Base Part

Weld Part

ABS/R5

760

1000

12

50

-20

58

42

Grade R5 Offshore Mooring Chain

Offshore Mooring Chain
