Full Function Pneumatic Control Valve
[Search Related Products]

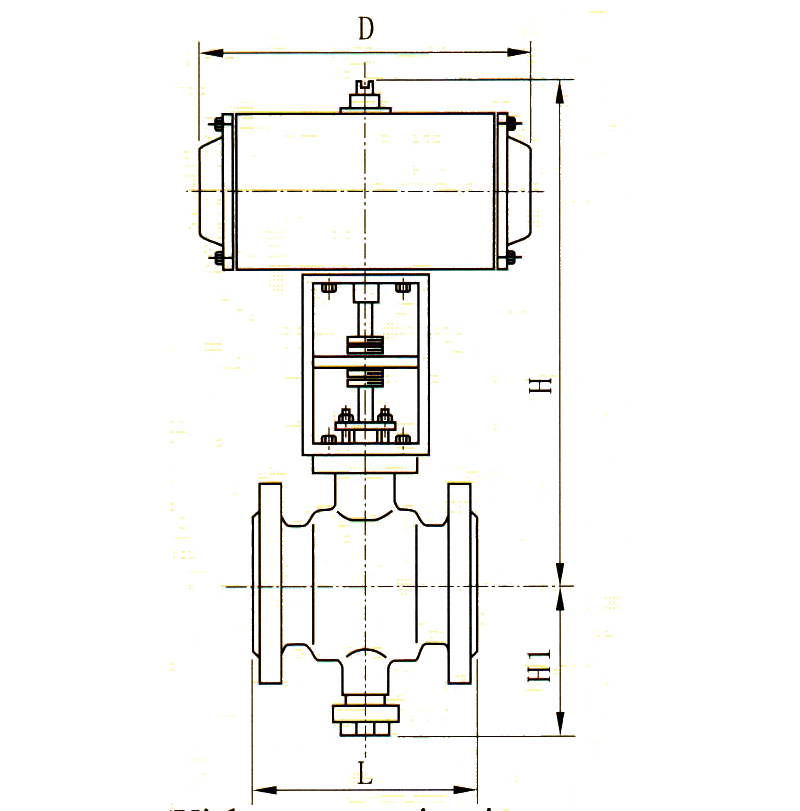

| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| L | PN1.6 | 120 | 120 | 120 | 120 | 120 | 130 | 140 | 150 | 165 | 180 | 216 | 280 | 310 | 370 | 410 | 490 | 560 | 620 |
| PN4.0 | 130 | 130 | 130 | 130 | 130 | 138 | 160 | 158 | 175 | 190 | 224 | 290 | 320 | 380 | 420 | 500 | 580 | 640 | |
| PN6.4 | 130 | 130 | 130 | 130 | 130 | 150 | 160 | 166 | 175 | 220 | 224 | 290 | 320 | 380 | 420 | 500 | 580 | 640 | |
| H1 | 103 | 103 | 103 | 103 | 103 | 125 | 127 | 140 | 155 | 170 | 188 | 225 | 250 | 290 | 325 | 355 | 470 | 470 | |
| H | Normal Temperature | 427 | 427 | 450 | 450 | 450 | 475 | 498 | 548 | 553 | 625 | 645 | 782 | 842 | 932 | 1030 | 1100 | 1240 | 1350 |
| Medium Temperature | 527 | 527 | 550 | 550 | 550 | 575 | 598 | 648 | 563 | 725 | 745 | 882 | 942 | 1032 | 1130 | 1200 | 1340 | 1450 | |
| High Temperature | 597 | 597 | 620 | 620 | 620 | 645 | 668 | 718 | 723 | 795 | 815 | 972 | 1032 | 1112 | 1210 | 1250 | 1450 | 1560 | |
| D | 203 | 203 | 222 | 222 | 222 | 294 | 300 | 380 | 380 | 450 | 450 | 603 | 603 | 683 | 840 | 840 | 900 | 960 | |
| Weight (kg) | 15 | 16 | 18 | 19 | 19 | 23 | 28 | 44 | 47 | 75 | 99 | 106 | 262 | 320 | 470 | 560 | 620 | 720 | |
