Full Function Electric Control Valve
[Search Related Products]

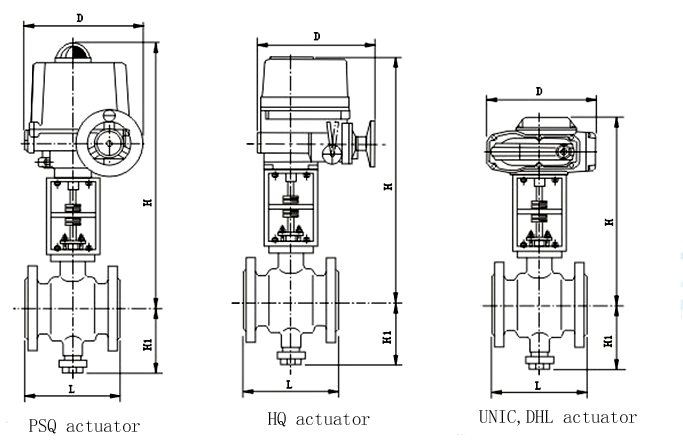

| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||
| L | PN1.6 | 120 | 120 | 120 | 120 | 130 | 140 | 150 | 165 | 180 | 216 | 280 | 310 | 370 | 410 | 490 | |
| PN4.0 | 130 | 130 | 130 | 130 | 138 | 160 | 158 | 175 | 190 | 224 | 290 | 320 | 380 | 420 | 500 | ||
| PN6.4 | 130 | 130 | 130 | 130 | 150 | 160 | 166 | 175 | 220 | 224 | 290 | 320 | 380 | 420 | 500 | ||
| H1 | 103 | 103 | 103 | 103 | 125 | 127 | 140 | 155 | 170 | 188 | 225 | 250 | 290 | 325 | 355 | ||
|
UNIC
DHL |
H | Normal Temperature | 399 | 399 | 399 | 399 | 424 | 427 | 446 | 456 | 471 | 491 | 610 | 670 | 760 | 790 | / |
| Medium Temperature | 499 | 499 | 499 | 499 | 524 | 527 | 546 | 556 | 571 | 591 | 710 | 770 | 860 | 890 | / | ||
| High Temperature | 569 | 569 | 569 | 569 | 594 | 597 | 616 | 626 | 641 | 661 | 800 | 860 | 940 | 970 | / | ||
| D | 207 | 207 | 207 | 207 | 207 | 207 | 256 | 256 | 256 | 256 | 380 | 380 | 380 | 380 | / | ||
| Weight (kg) | 15.5 | 17 | 17 | 18 | 19.5 | 22.5 | 34.5 | 39 | 45 | 69.5 | 104 | 201 | 247 | 342 | / | ||
| PSQ | H | Normal Temperature | 522 | 522 | 522 | 522 | 547 | 550 | 635 | 645 | 660 | 766 | 856 | 916 | / | / | / |
| Medium Temperature | 622 | 622 | 622 | 622 | 647 | 650 | 735 | 745 | 760 | 866 | 956 | 1016 | / | / | / | ||
| High Temperature | 692 | 692 | 692 | 692 | 717 | 720 | 805 | 815 | 830 | 936 | 1046 | 1106 | / | / | / | ||
| D | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 200 | 200 | 250 | 250 | 250 | / | / | / | ||
| Weight (kg) | 18 | 19.5 | 19.5 | 20.5 | 22 | 25 | 38.5 | 43 | 49 | 87 | 111 | 207 | / | / | / | ||
| HQ | H | Normal Temperature | 535 | 535 | 535 | 535 | 560 | 563 | 575 | 512 | 627 | 662 | 758 | 853 | 1098 | 1163 | 1233 |
| Medium Temperature | 635 | 635 | 635 | 635 | 660 | 663 | 675 | 712 | 727 | 762 | 858 | 953 | 1198 | 1263 | 1303 | ||
| High Temperature | 705 | 705 | 705 | 705 | 730 | 733 | 745 | 782 | 797 | 832 | 948 | 1043 | 1278 | 1343 | 1383 | ||
| D | 231 | 231 | 231 | 231 | 231 | 267 | 267 | 285 | 285 | 285 | 325 | 325 | 325 | 325 | 325 | ||
| Weight (kg) | 22 | 23.5 | 23.5 | 24.5 | 26 | 30 | 38.5 | 47 | 54 | 79 | 106 | 205 | 293 | 390 | 480 | ||
