Fork type Electric Hydraulic Steering Gear [Search Related Products]

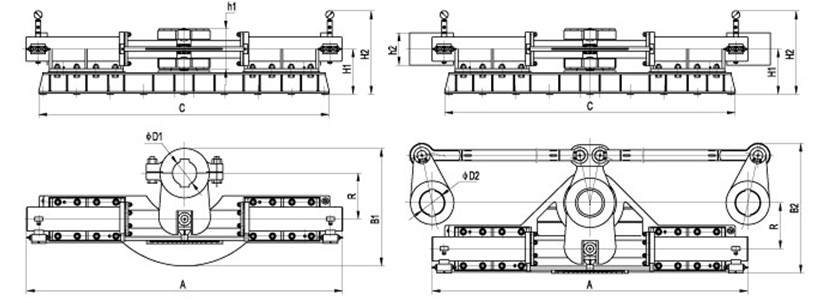

| Rated Torque £¨kN.m£© | A | B1 | B2 | C | H1 | H2 | H1 | H2 | R | D1 | D2 |
| 10-16 | 1470 | 490 | 670 | 1280 | 280 | 510 | 215 | 180 | 180 | ¡Ü125 | ¡Ü100 |
| 20-40 | 1870 | 615 | 840 | 1480 | 320 | 560 | 260 | 180 | 240 | ¡Ü165 | ¡Ü140 |
| 50-63 | 2238 | 706 | 935 | 2000 | 360 | 631 | 320 | 180 | 300 | ¡Ü180 | ¡Ü140 |
| 75-125 | 2498 | 925 | 1210 | 2460 | 380 | 734 | 345 | 280 | 350 | ¡Ü250 | ¡Ü250 |
| 160-200 | 2956 | 1065 | 1299 | 2830 | 380 | 1010 | 345 | 310 | 450 | ¡Ü300 | ¡Ü250 |
| 250-320 | 3610 | 1296 | 1520 | 3400 | 560 | 1040 | 500 | 400 | 500 | ¡Ü340 | ¡Ü300 |
| 350-400 | 3914 | 1456 | 1606 | 3600 | 560 | 1053 | 500 | 400 | 570 | ¡Ü340 | ¡Ü320 |
| 450-500 | 4300 | 1550 | 1700 | 3800 | 560 | 1070 | 570 | 450 | 600 | ¡Ü360 | ¡Ü340 |
10-500 KN.m The reciprocating fork type electronic hydraulic steering gear/engine is consist of 1 set reciprocating fork type rudder thrust mechanism, 2 sets oil motor pump tank, 1 reserve oil tank. It widely used on water inland jet stream zone, none jet stream zone ,sail line boats. When in water inland jet stream zone under 16 KN.m steering gear should add 1 set of pressure accumulator, above 16KN.m should add 1 set of direct-current motor pump to reach the require of CCS .Can use electronical control or pump control ,manual diverter valve control, steering control.It can cooperate with all kinds of automatic steering or follow-up steering device
