Fixed Arc Step Aluminum Accommodation Ladder[Search Related Products]
Aluminium Accommodation Ladder is designed and manufacture according to ISO5488-79 and GB/T14360-93. The features are with light weight and high intensity. The steps are fixed arc steps with skidproof grooves on the surface. All are to be anodized. According to the customer's request, it can be designed as vertical flip type, flat place type and telescopic type. CCS, BV, ABS, RINA, GL, LR, NK, etc certificate can be supplied.

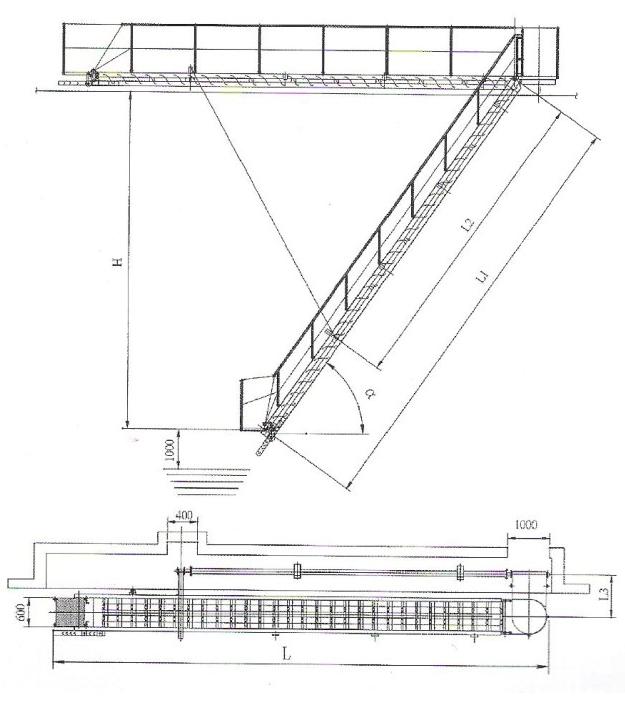

| No of Step | L | L1 | L2 | L3 | Max Height(H) | Step Space | Max use Angle |
| 12 | 5600 | 3600 | Decided when design | 850-2000 | 3620 | 300-(350) | 55กใ(60กใ) |
| 14 | 6200 | 4200 | 4100 | ||||
| 16 | 6800 | 4800 | 4590 | ||||
| 18 | 7400 | 5400 | 5080 | ||||
| 20 | 8000 | 6000 | 5800 | ||||
| 22 | 8600 | 6600 | 6300 | ||||
| 24 | 9200 | 7200 | 6800 | ||||
| 26 | 9800 | 7800 | 7300 | ||||
| 28 | 10400 | 8400 | 7800 | ||||
| 30 | 11000 | 9000 | 8300 | ||||
| 32 | 11600 | 9600 | 8800 | ||||
| 34 | 12200 | 10200 | 9300 | ||||
| 36 | 12800 | 10800 | 9800 | ||||
| 38 | 13400 | 11400 | 10300 | ||||
| 40 | 14000 | 12000 | 10800 | ||||
| 42 | 14600 | 12600 | 11300 | ||||
| 44 | 15200 | 13200 | 11800 | ||||
| 46 | 15800 | 13800 | 12300 | ||||
| 48 | 16400 | 14400 | 12800 | ||||
| 50 | 17000 | 15000 | 13300 | ||||
| 52 | 17600 | 15600 | 13800 | ||||
| 54 | 18200 | 16200 | 14300 | ||||
| 56 | 18800 | 16800 | 14700 | ||||
| 58 | 19400 | 17400 | 15100 | ||||
| 62 | 20600 | 18600 | 15500 | ||||
| 66 | 21800 | 19800 | 15900 | ||||
| 70 | 23000 | 21000 | 16300 |
