DIN6899 TypeB Wire Rope Thimble

DIN6899 TypeB Wire Rope Thimble:

DIN6899 typeB wire rope thimbles are widely used in rigging systems. Our company has lots of experiences in producing this model. All sizes are available and the price is competitve. Please feel free to get in touch with us.

Details:

1. Model: DIN6899 TypeB Wire Rope Thimble
2. Material: Carbon Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 2.5mm to 36mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Rope dia	Dimensions(mm)				Weight each kg/pc
Rope dia	A	L	C	S	Weight each kg/pc
2.5	3	19	12	1.6	0.005
3.5	4	21	13	1.6	0.008
4	5	23	14	2.4	0.01
5	6	25	16	2.4	0.016
6	7	28	18	2.4	0.019
7	8	32	20	2.8	0.03
9	10	38	24	3.1	0.047
11	12	45	28	3.3	0.068
13	13	48	30	3.3	0.08
13	14	51	32	3.7	0.1
15	16	58	36	3.8	0.145
16	17	61	38	4.7	0.18
17	18	64	40	4.7	0.2
18	20	72	45	5.7	0.29
20	22	80	50	5.7	0.32
22	24	90	56	6.5	0.47
24	26	99	62	6.8	0.59
26	28	112	70	8	0.8
28	30	120	75	8	1.1
30	32	128	80	8	1.23
32	34	152	92	8.5	1.56
34	36	160	100	8.5	1.76
36	38	176	110	8.5	1.92

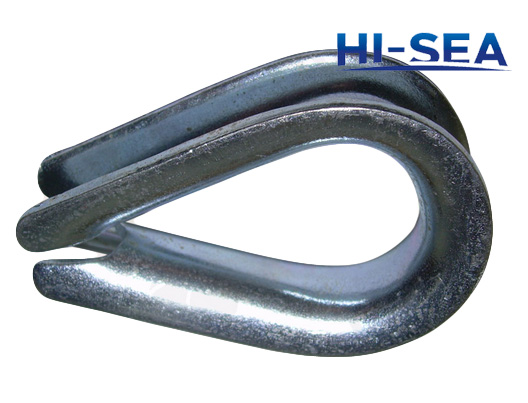

Photo:

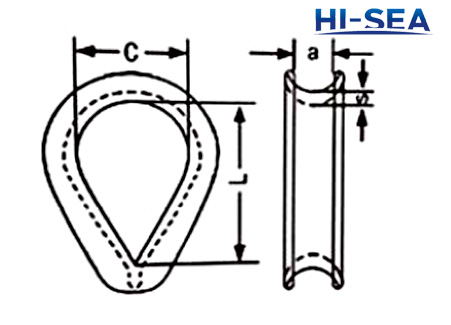

Structure:
