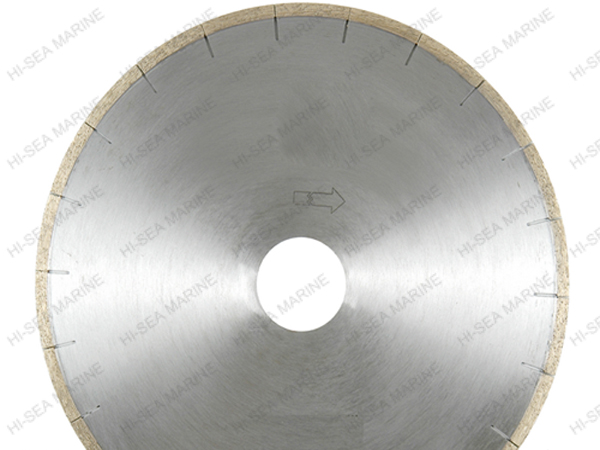

Diamond Saw Blade & Segment for Marble Block Cutting
Diamond Saw Blades for Block cutting of Marble, Limestone, all kinds of soft stones without quartz.
Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.
Warning: Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
TechnicalParameters£º
|
Diameter |
Segment Dimension (L ¡Á W ¡Á H) |
Core Thickness |
Segment NO. |
||
|
L |
W (Box Type) |
H |
|||
| 900mm | 24 | 6.5/7.0 | 10/12/15/20 | 5.0mm | 64 |
| 1000mm | 24 | 7.0/7.5 | 10/12/15/20 | 5.0mm | 70 |
| 1200mm | 24 | 8.0 | 10/12/15/20 | 5.5mm | 80 |
| 1300mm | 24 | 8.5 | 10/12 | 6.0mm | 88 |
| 1350mm | 24 | 8.5 | 10/12 | 6.0mm | 88 |
| 1400mm | 24 | 9.0 | 10/12 | 6.5mm | 96 |
| 1600mm | 24 | 10.0 | 10/12 | 6.5mm | 104/108 |
| 1800mm | 24 | 10.0 | 10/12 | 7.0mm | 120 |
| 2000mm | 24 | 11.0 | 10/12 | 8.0mm | 128 |
The above specification is only for Reference, other or special specification can be ordered by customers.
