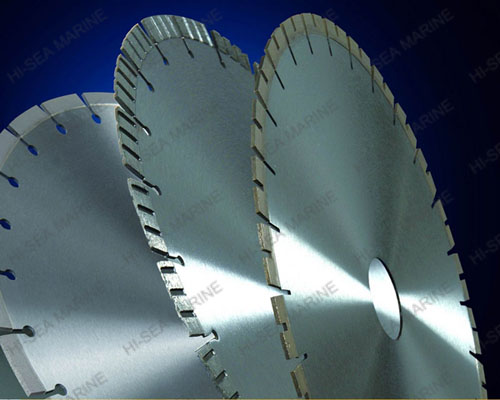

Diamond saw blade for Granite
[Search Related Products]
Diamond Saw Blade & Segment for Granite Cutting
1. Silver welding the Diamond segments to disc blank, to compose whole diamond saw blade. 2. Segment finishing, you can change new segments, disc blank can be used many times.
3. Diamond saw blade & segment for cutting block of granite slate sandstone, kinds of hard stones with quartz, suitable for bridge cutting machines & single arm cutting machines.
4. Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.
Warning: Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
Technical parameters:
|
Dia. (mm) |
Segment Dimension (L กม W กม H) |
Core Thickness |
Segment No. |
||
|
Length |
Width |
Height |
|||
|
900 |
24 |
7.0/6.5/6.0 |
10/12/15/20 |
5.0mm |
64 |
|
1000 |
24 |
7.0/6.5/6.0 |
10/12/15/20 |
5.0mm |
70 |
|
1200 |
24 |
7.5/7.0/6.5 |
10/12/15/20 |
5.5mm |
80 |
|
1350 |
24 |
8.5/8.0/7.5 |
12/15/20 |
6.0mm |
88 |
|
1400 |
24 |
9.0/8.5/8.0 |
12/15/20 |
6.5mm |
96 |
|
1600 |
24 |
9.4/8.9/8.4 |
12/15/20 |
6.5mm |
104/108 |
|
1800 |
24 |
10.0/9.5/9.0 |
12/15/20 |
7.0mm |
120 |
|
2000 |
24 |
10.5/10.0/9.5 |
12/15/20 |
8.0mm |
128 |
|
2200 |
24 |
11.5/11.0/10.5 |
12/15/20 |
8.5mm |
132/136 |
|
2500 |
24/30 |
12.0/11.5/11.0 |
15/20/30 |
9.5mm |
140 |
|
2700 |
24/30 |
12.0/11.5/11. |
15/20/30 |
9.5mm |
140 |
|
3000 |
24/30 |
12.5/12/11.5 |
20/30 |
10.0mm |
160 |
|
3500 |
24/30 |
13.0/12.5/12.0 |
20/30 |
10.0mm |
180 |
Above specification is only for Reference, other or special specification can be ordered by customers.
