Composite Dished Head:

Dished head / dished end / dished cap / dished torispherical head / dished elliptical head / dished torispherical end / dished torispherical cap, etc.;

Feature: two or more layers; basic layer for strength; surface layer for corrosion/heat resistance; less precious metal and lower cost;

Application: pressure vessels, storage tanks, boilers, pipes, heat exchangers, condensers, absorbers, etc.;

Surface treatment: sand/shot blasting, pickling, passivation, polishing, coating, lining, oiling, etc.;

ASME stamp available if required;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, BS, JIS, GOST, etc.
Material	Many types of composite plates, such as carbon steel + stainless steel, carbon steel + titanium alloy, carbon steel + nickel alloy, carbon steel + copper alloy, etc.
Production Method of Plate	explosion welding or hot rolled;
Connection Type	Butt-welded
Construction Type	Seamless or welded
Edge Type	Bevel, plain or as required

Pictures:

Composite Dished Head

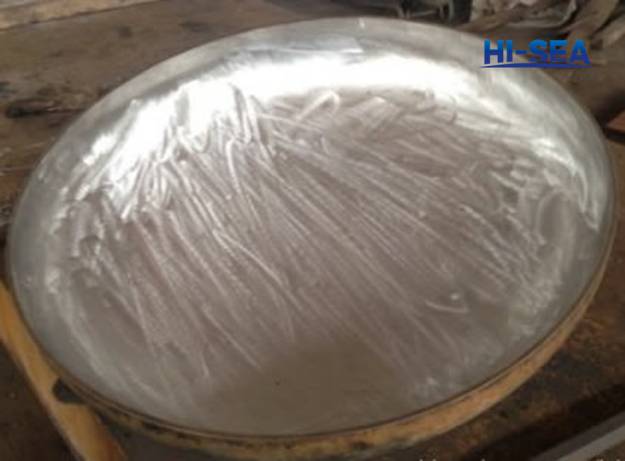

CS + SS Composite Dished Head

Composite Dished Head

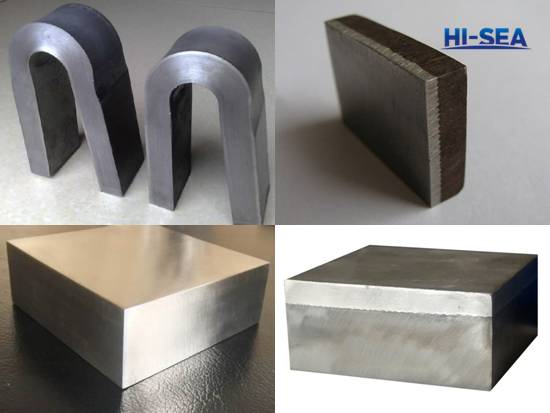

Composite Plate Samples

Composite Dished Head

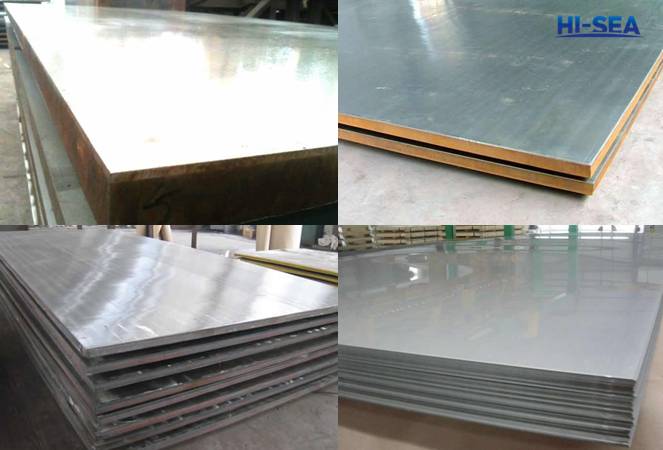

Composite Plate Stock

Composite Dished Head

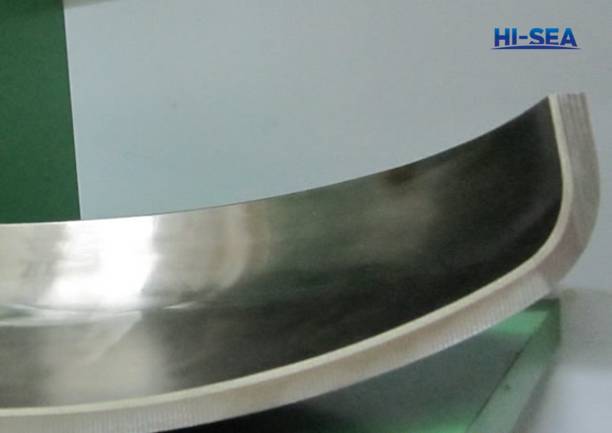

Composite Dished Head Section

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
