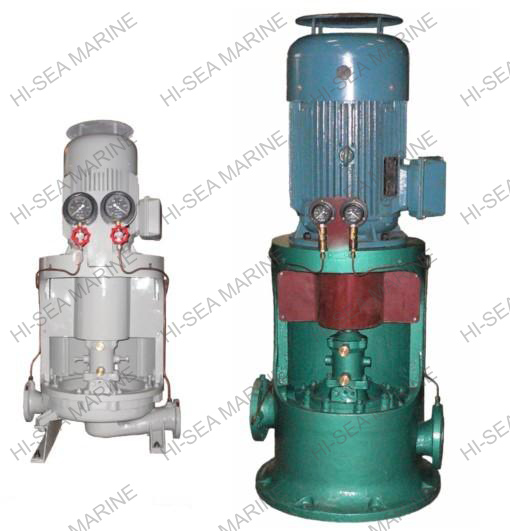

CLV series marine vertical centrifugal pump[Search Related Products]
CLV series marine vertical centrifugal pump:
1.General:
CLV series vertical centrifugal pump is our newly developed product driven by a marine motor. It is widely used for transporting fresh water, seawater, condensate, oils and saline water. The transported medium shall not contain any abrasive materials and any other chemicals corrosive on the pump. It widely serves as fresh water and seawater cooling pump, burr pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet. The transported medium temperature shall not exceed 80℃. AELC self-priming device can be assembled according to users’ order with additional cost, to achieve self-priming function. Viewing from the motor end downward, this series pump rotates clockwise.
2. List of performance parameters:
| Parameters in case of power supply frequency of 50Hz 3φ 380V | |||||||
| 型号规格Type | 主要参数(50Hz 3φ 380V) Main technical parameter | 电机型号功率Motor type & powerkW | 泵组重量WeightKg | ||||
| 流 量Capacitym3/h | 扬 程Headm | 转 速Speedr/min | 汽蚀余量NPSHr m | 轴 功 率Shaft power kW | |||
| CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 | Y100L1-4H 2.2 | 170 |
| CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 | Y112M-4H 4 | 184 |
| CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 | Y132S-4H 5.5 | 215 |
| CLV65-350A | 25 | 41 | 1450 | 2.5 | 6.1 | Y132M-4H 7.5 | 235 |
| CLV80-200A | 48 | 14.5 | 1450 | 2.5 | 2.8 | Y112M-4H 4 | 186 |
| CLV80-220A | 45 | 62 | 2900 | 4 | 12 | Y160M2-2H 15 | 370 |
| CLV80-220B1 | 45 | 48 | 2900 | 4 | 9.8 | Y160M1-2H 11 | 335 |
| CLV80-280A | 54 | 21.5 | 1450 | 3 | 4.5 | Y132S-4H 5.5 | 215 |
| CLV80-300A | 46 | 28 | 1450 | 2.8 | 5.8 | Y132M-4H 7.5 | 235 |
| CLV80-350A | 54 | 41 | 1450 | 3 | 10.5 | Y160L-4H 15 | 422 |
| CLV80-350B | 40 | 35 | 1450 | 2.5 | 6.9 | Y160M-4H 11 | 389 |
| CLV80-350 B2 | 42 | 41 | 1450 | 2.5 | 8.4 | Y160M-4H 11 | 389 |
| CLV100-200 A | 83 | 14.5 | 1450 | 3 | 4.6 | Y132S-4H 5.5 | 215 |
| CLV100-220 A | 95 | 68.5 | 2900 | 4.5 | 24.2 | Y200L1-2H 30 | 470 |
| CLV100-220 B | 87 | 55 | 2900 | 4.5 | 18.5 | Y180M-2H 22 | 435 |
| CLV100-280 A | 83 | 21 | 1450 | 3 | 6.4 | Y132M-4H 7.5 | 265 |
| CLV100-300 A | 83 | 28 | 1450 | 2.8 | 9.1 | Y160M-4H 11 | 290 |
| CLV100-350 A | 83 | 41 | 1450 | 3.2 | 14.2 | Y180M-4H 18.5 | 347 |
| CLV125-200 A | 116 | 14 | 1450 | 3.5 | 5.9 | Y132M-4H 7.5 | 265 |
| CLV125-220 A | 149 | 68.5 | 2900 | 5.5 | 36.9 | Y225M-2H 45 | 595 |
| CLV125-220 B | 128 | 55 | 2900 | 5 | 26.7 | Y200L2-2H 37 | 510 |
| CLV125-270 A | 140 | 86 | 2900 | 5 | 44.7 | Y250M-2H 55 | 800 |
| CLV125-280 A | 125 | 21 | 1450 | 3.5 | 9.6 | Y160M-4H 11 | 300 |
| CLV125-300A | 125 | 28 | 1450 | 3 | 14.3 | Y180M-4H 18.5 | 360 |
| CLV125-350 A | 125 | 41 | 1450 | 3.5 | 19.8 | Y200L-4H 30 | 470 |
| CLV125-350 B | 116 | 34 | 1450 | 3.5 | 15.9 | Y180L-4H 22 | 410 |
| CLV150-200 A | 190 | 14 | 1450 | 3.5 | 9.5 | Y160M-4H 11 | 315 |
| CLV150-220 A | 273 | 62 | 2900 | 4.5 | 61.4 | Y280S-2H 75 | 935 |
| CLV150-270 A | 265 | 86 | 2900 | 4 | 82.1 | Y315S-2H 110 | 1280 |
| CLV150-280 A | 182 | 21 | 1450 | 3.5 | 13.4 | Y180M-4H 18.5 | 390 |
| CLV150-300 A | 182 | 27.5 | 1450 | 4 | 17.7 | Y180L-4H 22 | 430 |
| CLV150-350 A | 190 | 41 | 1450 | 3.5 | 29.1 | Y225S-4H 37 | 550 |
| CLV150-350 B2 | 190 | 35 | 1450 | 3.5 | 25.6 | Y200L-4H 30 | 511 |
| CLV200-200 A | 332 | 13.7 | 1450 | 4 | 15.9 | Y180M-4H 18.5 | 410 |
| CLV200-280 A | 330 | 20.5 | 1450 | 4.5 | 23.4 | Y200L-4H 30 | 510 |
| CLV200-280 B | 290 | 17 | 1450 | 4.5 | 17.3 | Y180L-4H 22 | 450 |
| CLV200-280 B2 | 250 | 20.5 | 1450 | 4 | 17.9 | Y180L-4H 22 | 450 |
| CLV200-300 A | 325 | 27.5 | 1450 | 4.5 | 30.3 | Y225S-4H 37 | 571 |
| CLV200-350 A | 330 | 41 | 1450 | 4.5 | 46.5 | Y250M-4H 55 | 820 |
| CLV250-280 A | 500 | 20.5 | 1450 | 4.5 | 34.8 | Y225M-4H 45 | 895 |
| CLV250-280 B | 415 | 17 | 1450 | 4.2 | 24.4 | Y200L-4H 30 | 800 |
| CLV250-300 B2 | 415 | 27 | 1450 | 4.5 | 38.9 | Y225M-4H 45 | 905 |
| CLV250-350 A | 500 | 34 | 1450 | 5 | 56.8 | Y280S-4H 75 | 1150 |
| CLV250-360 A | 500 | 14 | 960 | 4 | 23.5 | Y225M-6H 30 | 725 |
| CLV250-360 B2 | 400 | 14 | 960 | 3.5 | 19.4 | Y200L2-6H 22 | 675 |
| CLV300-300 A | 705 | 27.5 | 1450 | 4.5 | 64.7 | Y280S-4H 75 | 1520 |
| CLV300-360 A | 660 | 14 | 960 | 4.5 | 31.8 | Y250M-6H 37 | 800 |
| CLV350-280 A | 830 | 20.5 | 1450 | 4.8 | 57.6 | Y280S-4H 75 | 1520 |
| CLV350-280 B2 | 620 | 20.5 | 1450 | 4.5 | 44.1 | Y250M-4H 55 | 1390 |
| CLV350-360 A | 829 | 14 | 960 | 3.8 | 39.4 | Y280S-6H 45 | 1500 |
| 2.电源为60Hz 3φ 440V时的性能参数： | |||||||
| Parameters in case of power supply frequency of 60Hz 3φ 440V | |||||||
| 型号规格Type | 主要参数(60Hz 3φ440V) Main technical parameter | 电机型号功率Motor type & powerkW | 泵组重量WeightKg | ||||
| 流 量Capacitym3/h | 扬 程Headm | 转 速Speedr/min | 汽蚀余量NPSHr m | 轴 功 率Shaft power kW | |||
| CLV165-200A | 33 | 21.5 | 1750 | 2.8 | 3.2 | Y112M-4H 4 | |
| CLV165-280A | 36 | 31 | 1750 | 3.2 | 5.2 | Y132M-4H 7.5 | |
| CLV165-300A | 36 | 41 | 1750 | 3.2 | 7.4 | Y160M-4H 11 | |
| CLV165-350A | 30 | 60 | 1750 | 2.8 | 10.6 | Y160L-4H 15 | |
| CLV180-200A | 58 | 21.5 | 1750 | 3.2 | 4.9 | Y132S-4H 5.5 | |
| CLV180-220A | 54 | 90 | 3500 | 5.5 | 21.4 | Y200L1-2H 30 | |
| CLV180-220B1 | 54 | 70 | 3500 | 4.8 | 17.5 | Y180M-2H 22 | |
| CLV180-280A | 65 | 31 | 1750 | 3.8 | 7.8 | Y160M-4H 11 | |
| CLV180-300A | 56 | 41 | 1750 | 3.5 | 10.1 | Y160M-4H 11 | |
| CLV180-350A | 65 | 60 | 1750 | 3.8 | 18.6 | Y180L-4H 22 | |
| CLV180-350B | 48 | 51 | 1750 | 3.5 | 11.8 | Y160L-4H 15 | |
| CLV180-350 B2 | 50 | 60 | 1750 | 3.5 | 14.3 | Y180M-4H 18.5 | |
| CLV1100-200 A | 100 | 21 | 1750 | 4 | 7.8 | Y160M-4H 11 | |
| CLV1100-220 A | 115 | 100 | 3500 | 5.8 | 40.8 | Y250M-2H 55 | |
| CLV1100-220 B | 105 | 80 | 3500 | 5.8 | 32.5 | Y200L2-2H 37 | |
| CLV1100-280 A | 100 | 31 | 1750 | 4 | 11.6 | Y160L-4H 15 | |
| CLV1100-300 A | 100 | 41 | 1750 | 3.8 | 15.6 | Y180M-4H 18.5 | |
| CLV1100-350 A | 100 | 60 | 1750 | 4.2 | 24.7 | Y200L-4H 30 | |
| CLV1125-200 A | 140 | 20.5 | 1750 | 4.5 | 10.2 | Y160L-4H 15 | |
| CLV1125-220 B | 150 | 80 | 3500 | 6.8 | 45.2 | Y250M-2H 55 | |
| CLV1125-220 A | 180 | 100 | 3500 | 7.3 | 64.8 | Y280S-2H 75 | |
| CLV1125-270 A | 170 | 125 | 3500 | 6.8 | 81.7 | Y280M-2H 90 | |
| CLV1125-280 A | 150 | 31 | 1750 | 4 | 16.8 | Y180L-4H 22 | |
| CLV1125-300 A | 150 | 41 | 1750 | 3.5 | 24.5 | Y200L-4H 30 | |
| CLV1125-350 A | 150 | 60 | 1750 | 4.3 | 34.3 | Y225M-4H 45 | |
| CLV1125-350 B | 140 | 50 | 1750 | 4 | 27.9 | Y225S-4H 37 | |
| CLV1150-200 A | 230 | 20.5 | 1750 | 4.3 | 16.7 | Y180L-4H 22 | |
| CLV1150-220 A | 330 | 90 | 3500 | 6.8 | 105.5 | Y315M-2H 132 | |
| CLV1150-270 A | 320 | 125 | 3500 | 5.3 | 143.6 | Y315L1-2H 160 | |
| CLV1150-280 A | 220 | 31 | 1750 | 4.5 | 24.7 | Y200L-4H 30 | |
| CLV1150-300 A | 220 | 40 | 1750 | 5.3 | 32.1 | Y225S-4H 37 | |
| CLV1150-350 A | 230 | 60 | 1750 | 4.5 | 51.3 | Y280S-4H 75 | |
| CLV1150-350 B1 | 230 | 51 | 1750 | 4.8 | 44.7 | Y250M-4H 55 | |
| CLV1200-200 A | 400 | 20 | 1750 | 4.8 | 27.9 | Y200L-4H 30 | |
| CLV1200-280 A | 400 | 30 | 1750 | 6 | 41.2 | Y225M-4H 45 | |
| CLV1200-280 B | 350 | 25 | 1750 | 5.8 | 31.4 | Y225S-4H 37 | |
| CLV1200-280 B2 | 300 | 30 | 1750 | 5.3 | 31.4 | Y225S-4H 37 | |
| CLV1200-300 A | 390 | 40 | 1750 | 5.8 | 53.4 | Y280S-4H 75 | |
| CLV1200-350 A | 400 | 60 | 1750 | 5.8 | 82 | Y280M-4H 90 | |
| CLV1250-280 A | 600 | 30 | 1750 | 5.8 | 61.1 | Y280S-4H 75 | |
| CLV1250-280 B | 500 | 25 | 1750 | 5.5 | 43.3 | Y250M-4H 55 | |
| CLV1250-300 B2 | 500 | 40 | 1750 | 5.8 | 69.5 | Y280S-4H 75 | |
| CLV1250-350 A | 600 | 50 | 1750 | 6.5 | 100.2 | Y315M-4H 132 | |
| CLV1250-360 A | 600 | 20 | 1150 | 4.8 | 40.3 | Y280S-6H 45 | |
| CLV1250-360 B2 | 480 | 20 | 1150 | 4.8 | 34.3 | Y250M-6H 37 | |
| CLV1300-300 A | 850 | 40 | 1750 | 5.8 | 113.5 | Y315M-4H 132 | |
| CLV1300-360 A | 800 | 20 | 1150 | 5.8 | 55.1 | Y315S-6H 75 | |
| CLV1350-280 A | 1000 | 30 | 1750 | 6 | 101.6 | Y315S-4H 110 | |
| CLV1350-280 B2 | 750 | 30 | 1750 | 5.8 | 78.1 | Y280M-4H 90 | |
| CLV1350-360 A | 1000 | 20 | 1150 | 4.8 | 67.9 | Y315S-6H 75 | |
