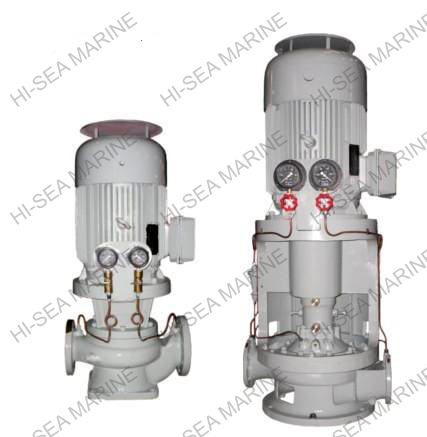

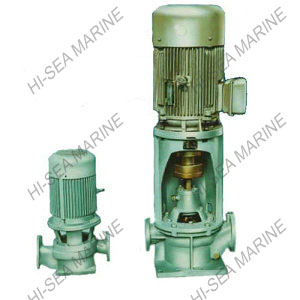

CLH Series marine vertical centrifugal pump[Search Related Products]
Brife introduction:
1. CLH series vertical centrifugal marine pump isapplied in all kinds of ship and warship for ballast pump ,bilge pump, coolant pump,drainage pump and fire pump.It also used as neccessary feed pump for seawater desalting device and various tank equipument,and the booster pump for petroleum and and chemical industry pipelines,cold and hto water circulating system and high-rise building living water supply system.
2.
CLH Series marine pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80 degrees. Fresh water and other non-eroding liquid.
Pump Number’s meanings:
A figure the first cut impeller，B figure the second, C figure the third
Z figure Direct-drive transmission structural mode, if the one is no Z in the model number, figures that Indirect-drive transmission structural mode. It must be droved by an intermediate coupling. It is easy to disassemble and maintain.
Main Technical Parameter:
| Series Name | CLH |
| Product Name | Verticalcentrifugal pump |
| Product Model | HS-CLH01 |
| Capacity | 3-300 m3/h |
| Head | 8-140 m |
| Speed | 2900 /3450 r/min 1450/1725 r/min |
| Motor power | 0.37-110 kw |
| Application |
Applied in all kinds of shipping and warship for ballast pump ,bilge pump, coolant pump,drainage pump and fire pump |
| Tempreture | max.80℃ |
| Certification | CCS, BV |
List of performance parameters:
| Pameters in case of power supply frequency of 50Hz 3φ 380V | |||||||
|
型号规格 Type |
主要参数(50Hz 3φ 380V) Main technical parameter | 电机型号功率Motor type & powerkW | 泵组重量WeightKg | ||||
| 流 量Capacitym3/h | 扬 程Headm | 转 速Speedr/min | 汽蚀余量NPSHr m | 轴 功 率Shaft power kW | |||
| 25CLH-6.5Z | 3 | 8 | 2900 | 4 | 0.16 | Y80L1-2H 0.75 | |
| 40CLH-5Z | 10 | 30 | 2900 | 4 | 1.82 | Y90L-2H 2.2 | 73 |
| 40CLH-3.5Z | 5 | 30 | 2900 | 4 | 1.26 | Y90S-2H 1.5 | 65 |
| 40CLH-3Z | 10 | 50 | 2900 | 2.8 | 3.24 | Y112M-2H 4 | 110 |
| 40CLH-2.5Z | 10 | 65 | 2900 | 3 | 4.66 | Y132S1-2H 5.5 | |
| 40CLH-2Z | 5 | 50 | 2900 | 2.8 | 2.28 | Y100L-2H 3 | 104 |
| 50CLH-7Z | 20 | 30 | 2900 | 3 | 2.47 | Y112M-2H 4 | 83 |
| 50CLH-7AZ | 18 | 25 | 2900 | 3 | 1.92 | Y100L-2H 3 | 72 |
| 50CLH-4.5Z | 20 | 50 | 2900 | 3 | 4.54 | Y132S1-2H 5.5 | 98 |
| 50CLH-3.5Z | 20 | 65 | 2900 | 3.5 | 8.85 | Y160M1-2H 11 | 145 |
| 65CLH-8.5Z | 30 | 30 | 2900 | 3 | 4.02 | Y132S1-2H 5.5 | 125 |
| 65CLH-8.5AZ | 25 | 26 | 2900 | 3 | 2.95 | Y112M-2H 4 | 106 |
| 65CLH-5.5Z | 30 | 50 | 2900 | 3 | 6.92 | Y160M1-2H 11 | 171 |
| 65CLH-5.5AZ | 27 | 45 | 2900 | 3 | 5.7 | Y132S2-2H 7.5 | 140 |
| 65CLH-4.5Z | 30 | 65 | 2900 | 3 | 9.48 | Y160M1-2H 11 | 200 |
| 65CLH-4.5AZ | 27 | 58 | 2900 | 3 | 7.9 | Y160M1-2H 11 | 141 |
| 80CLH-16Z | 50 | 20 | 2900 | 3.5 | 3.6 | Y132S2-2H 5.5 | 156 |
| 80CLH-11Z | 50 | 30 | 2900 | 3.5 | 6.19 | Y132S2-2H 7.5 | 162 |
| 80CLH-11AZ | 45 | 26 | 2900 | 3.5 | 4.98 | Y132S2-2H 7.5 | 162 |
| 80CLH-7Z | 50 | 50 | 2900 | 3.5 | 10.47 | Y160M1-2H 15 | 245 |
| 80CLH-7AZ | 44 | 45 | 2900 | 3.5 | 8.56 | Y160M1-2H 11 | 230 |
| 80CLH-5.5Z | 50 | 65 | 2900 | 3.5 | 15.25 | Y160L-2H 18.5 | 275 |
| 80CLH-5.5AZ | 46 | 57 | 2900 | 3.5 | 12.76 | Y160M2-2H 15 | 250 |
| 80CLH-5 | 60 | 85 | 2900 | 4 | 24.8 | Y200L1-2H 30 | 595 |
| 80CLH-5A | 50 | 80 | 2900 | 4 | 19.5 | Y180M-2H 22 | 560 |
| 80CLH-4.5Z | 50 | 80 | 2900 | 3.5 | 19.5 | Y180M-2H 22 | 295 |
| 100CLH-22Z | 95 | 15 | 2900 | 5 | 5.18 | Y132M2-2H 7.5 | 142 |
| 100CLH-19Z | 100 | 20 | 2900 | 5 | 7.27 | Y160M1-2H 11 | 192 |
| 100CLH-15Z | 100 | 30 | 2900 | 4.8 | 11.19 | Y160M2-2H 15 | 215 |
| 100CLH-15AZ | 90 | 27 | 2900 | 4.8 | 9.32 | Y160M1-2H 11 | 192 |
| 100CLH-13Z | 70 | 30 | 2900 | 4 | 8.41 | Y160M1-2H 11 | 195 |
| 100CLH-13AZ | 63 | 27 | 2900 | 4 | 6.18 | Y160M1-2H 11 | 194 |
| 100CLH-11Z | 80 | 15 | 1450 | 2.5 | 4.36 | Y132S-4H 5.5 | 152 |
| 100CLH-10Z | 100 | 50 | 2900 | 4.8 | 18.39 | Y180M-2H 22 | 275 |
| 100CLH-10AZ | 86 | 45 | 2900 | 5 | 14.84 | Y160L-2H 18.5 | 240 |
| 100CLH-10 | 100 | 50 | 2900 | 4.8 | 18.39 | Y180M-2H 22 | 560 |
| 100CLH-10A | 86 | 45 | 2900 | 5 | 14.84 | Y160L-2H 18.5 | 540 |
| 100CLH-8.5Z | 70 | 45 | 2900 | 4 | 12.89 | Y160L-2H 18.5 | 239 |
| 100CLH-6 | 100 | 80 | 2900 | 3.8 | 30.3 | Y200L2-2H 37 | 480 |
| 100CLH-6A | 93 | 70 | 2900 | 3.8 | 24.2 | Y200L1-2H 30 | 450 |
| 100CLH-6B | 80 | 62 | 2900 | 3.8 | 18.5 | Y180M-2H 22 | 415 |
| 125CLH-19 | 150 | 30 | 2900 | 5 | 16.34 | Y180M-2H 22 | 308 |
| 125CLH-19A | 135 | 26.5 | 2900 | 5.5 | 13.32 | Y160L-2H 18.5 | 280 |
| 125CLH-19Z | 150 | 30 | 2900 | 5 | 16.34 | Y180M-2H 22 | 315 |
| 125CLH-19AZ | 135 | 26.5 | 2900 | 5.5 | 13.34 | Y160L-2H 18.5 | 295 |
| 125CLH-13 | 200 | 50 | 2900 | 5 | 34.9 | Y225M-2H 45 | 448 |
| 125CLH-13A | 185 | 44 | 2900 | 5 | 28.8 | Y200L2-2H 37 | 378 |
| 125CLH-13B | 165 | 34 | 2900 | 5 | 19.9 | Y180M-2H 22 | 313 |
| 125CLH-12 | 160 | 50 | 2900 | 5 | 28.3 | Y200L2-2H 37 | 378 |
| 125CLH-10 | 150 | 65 | 2900 | 5.5 | 36.86 | Y225M-2H 45 | 525 |
| 125CLH-10A | 130 | 58 | 2900 | 5.5 | 29.32 | Y200L2-2H 37 | 450 |
| 125CLH-8 | 140 | 86 | 2900 | 4 | 46.7 | Y250M-2H 55 | 650 |
| 125CLH-8A | 120 | 80 | 2900 | 4 | 38.5 | Y225M-2H 45 | 580 |
| 125CLH-6.5 | 150 | 110 | 2900 | 5.5 | 62.4 | Y280S-2H 75 | |
| 150CLH-26Z | 200 | 20 | 2900 | 5.5 | 14.3 | Y160L-2H 18.5 | |
| 150CLH-26AZ | 190 | 17 | 2900 | 5.5 | 11.7 | Y160M2-2H 15 | |
| 150CLH-22 | 200 | 30 | 2900 | 6 | 20.94 | Y200L1-2H 30 | |
| 150CLH-18Z | 160 | 14 | 1450 | 6.5 | 7.63 | Y160M-4H 11 | 258 |
| 150CLH-13.5 | 180 | 50 | 2900 | 5 | 32.67 | Y225M-2H 45 | 448 |
| 150CLH-13 | 200 | 20 | 1450 | 3.5 | 13.62 | Y180M-4H 18.5 | 450 |
| 150CLH-13A | 187 | 17 | 1450 | 3.5 | 11 | Y160L-4H 15 | 422 |
| 150CLH-11 | 180 | 65 | 2900 | 6.2 | 43.63 | Y250M-2H 55 | 750 |
| 150CLH-10.5 | 250 | 32 | 1450 | 4 | 29.1 | Y225S-4H 37 | 590 |
| 150CLH-10 | 260 | 86 | 2900 | 4 | 81.7 | Y315S-2H 110 | |
| 150CLH-9 | 200 | 32 | 1450 | 3.5 | 22.1 | Y200L-4H 30 | 590 |
| 150CLH-9A | 180 | 28 | 1450 | 3.5 | 18.2 | Y180L-4H 22 | 500 |
| 150CLH-9B | 160 | 25 | 1450 | 3.5 | 14.7 | Y160L-2H 18.5 | 485 |
| 150CLH-6 | 160 | 50 | 1450 | 5 | 29.8 | Y225S-4H 37 | 630 |
| 150CLH-6A | 150 | 45 | 1450 | 5 | 25.2 | Y200L-4H 30 | 610 |
| 200CLH-9 | 320 | 32 | 1450 | 4 | 36.7 | Y225M-4H 45 | 719 |
| 200CLH-12 | 300 | 30 | 1450 | 4 | 30.6 | Y225S-4H 37 | 685 |
| 200CLH-12A | 280 | 25 | 1450 | 4 | 24.1 | Y200L-4H 30 | 625 |
| 200CLH-18 | 400 | 20 | 1450 | 4.5 | 27.2 | Y225S-4H 37 | 685 |
| 250CLH-18 | 500 | 30 | 1450 | 4.5 | 51.1 | Y280S-4H 75 | 895 |
| 250CLH-18A | 500 | 24 | 1450 | 4.5 | 40.9 | Y225M-4H 45 | 789 |
| 250CLH-18B | 450 | 20 | 1450 | 4.5 | 33.6 | Y225S-4H 37 | 754 |
| 2/40CLH-2Z | 6 | 110 | 2900 | 3.5 | 5.14 | Y132S2-2H 7.5 | 170 |
| 2/40CLH-3 | 20 | 70 | 2900 | 3.5 | 10.05 | Y160M2-2H 15 | |
| 2/50CLH-2.5 | 35 | 140 | 2900 | 4 | 26.15 | Y200L1-2H 30 | |
| 2/65CLH-3.5 | 50 | 120 | 2900 | 4.5 | 27.68 | Y200L2-2H 37 | |
| 2.电源为60Hz 3φ 440V时的性能参数： | |||||||
| Parameters in case of power supply frequency of 60Hz 3φ 440V | |||||||
| 型号规格Type | 主要参数(60Hz 3φ 440V) Main technical parameter | 电机型号功率Motor type & powerkW | 泵组重量WeightKg | ||||
| 流 量Capacitym3/h | 扬 程Headm | 转 速Speedr/min | 汽蚀余量NPSHr m | 轴 功 率Shaft power kW | |||
| 25CLH-6.5ZG | 3.6 | 11.5 | 3500 | 4 | 0.27 | Y80L1-2H 0.75 | |
| 40CLH-5ZG | 12 | 42 | 3500 | 5 | 3.05 | Y112M-2H 4 | |
| 40CLH-3.5ZG | 6 | 45 | 3500 | 5 | 2.26 | Y100L-2H 3 | |
| 40CLH-3ZG | 12 | 72 | 3500 | 4 | 5.88 | Y132S2-2H 7.5 | |
| 40CLH-2.5ZG | 12 | 93 | 3500 | 4 | 7.6 | Y160M1-2H 11 | |
| 40CLH-2ZG | 6 | 72 | 3500 | 4 | 3.36 | Y112M-2H 4 | |
| 50CLH-7ZG | 24 | 42 | 3500 | 4.2 | 4.65 | Y132S1-2H 5.5 | |
| 50CLH-7AZG | 21 | 36 | 3500 | 4.2 | 3.22 | Y112M-2H 4 | |
| 50CLH-4.5ZG | 24 | 72 | 3500 | 4.1 | 8.55 | Y160M1-2H 11 | |
| 50CLH-3.5ZG | 24 | 93 | 3500 | 3.8 | 15.2 | Y160L-2H 18.5 | |
| 65CLH-8.5ZG | 36 | 42 | 3500 | 4.3 | 6.43 | Y132S2-2H 7.5 | |
| 65CLH-8.5AZG | 30 | 37 | 3500 | 4.5 | 4.88 | Y132S1-2H 5.5 | |
| 65CLH-5.5ZG | 36 | 72 | 3500 | 4.9 | 12.2 | Y160M2-2H 15 | |
| 65CLH-5.5AZG | 32 | 64 | 3500 | 4.9 | 9.62 | Y160M1-2H 11 | |
| 65CLH-4.5ZG | 36 | 93 | 3500 | 4.2 | 16.9 | Y180M-2H 22 | |
| 65CLH-4.5AZG | 32 | 82 | 3500 | 4.2 | 13.2 | Y160M2-2H 15 | |
| 80CLH-16ZG | 60 | 28 | 3500 | 4.5 | 6.1 | Y132S2-2H 7.5 | |
| 80CLH-11ZG | 60 | 42 | 3500 | 5 | 10.1 | Y160M2-2H 15 | |
| 80CLH-11AZG | 54 | 37 | 3500 | 5 | 8.12 | Y160M1-2H 11 | |
| 80CLH-7ZG | 60 | 72 | 3500 | 5.6 | 18.1 | Y180M-2H 22 | |
| 80CLH-7AZG | 52 | 64 | 3500 | 5.6 | 14.4 | Y160L-2H 18.5 | |
| 80CLH-5.5G | 60 | 93 | 3500 | 4.8 | 25.3 | Y200L1-2H 30 | |
| 80CLH-5.5AG | 55 | 82 | 3500 | 4.8 | 21.2 | Y200L1-2H 30 | |
| 80CLH-5 | 72 | 122 | 3500 | 4.8 | 42.7 | Y250M-2H 55 | |
| 80CLH-5A | 60 | 115 | 3500 | 4.8 | 33.6 | Y225M-2H 45 | |
| 80CLH-4.5G | 60 | 115 | 3500 | 4.8 | 33.6 | Y200L2-2H 37 | |
| 100CLH-22ZG | 110 | 22 | 3500 | 6.5 | 9.03 | Y160M1-2H 11 | |
| 100CLH-19ZG | 120 | 28 | 3500 | 6.5 | 12.2 | Y160M1-2H 15 | |
| 100CLH-15G | 120 | 42 | 3500 | 5.7 | 19.3 | Y180M-2H 22 | |
| 100CLH-15AG | 108 | 38 | 3500 | 5.7 | 15.7 | Y160L-2H 18.5 | |
| 100CLH-13G | 84 | 42 | 3500 | 5.7 | 13.9 | Y160L-2H 18.5 | |
| 100CLH-13AG | 75 | 38 | 3500 | 5.7 | 11.6 | Y160M2-2H 15 | |
| 100CLH-11G | 95 | 21 | 1750 | 4 | 7.4 | Y160M-4H 11 | |
| 100CLH-10G | 120 | 72 | 3500 | 6.5 | 33.6 | Y200L2-2H 37 | |
| 100CLH-10AG | 103 | 64 | 3500 | 6.5 | 26 | Y200L1-2H 30 | |
| 100CLH-8.5G | 84 | 64 | 3500 | 4.2 | 22.5 | Y200L1-2H 30 | |
| 100CLH-6G | 120 | 115 | 3500 | 5.5 | 52.2 | Y280S-2H 75 | |
| 100CLH-6AG | 110 | 100 | 3500 | 5.5 | 41.6 | Y250M-2H 55 | |
| 100CLH-6BG | 96 | 89 | 3500 | 5.5 | 32.8 | Y200L2-2H 37 | |
| 125CLH-19G | 180 | 42 | 3500 | 7 | 28.2 | Y200L2-2H 37 | |
| 125CLH-19AG | 160 | 38 | 3500 | 7 | 22.7 | Y200L1-2H 30 | |
| 125CLH-13G | 240 | 72 | 3500 | 7 | 60.3 | Y280S-2H 75 | |
| 125CLH-13AG | 220 | 63 | 3500 | 7 | 49 | Y250M-2H 55 | |
| 125CLH-13BG | 195 | 48 | 3500 | 7 | 25.5 | Y200L1-2H 30 | |
| 125CLH-12G | 190 | 72 | 3500 | 7 | 48.4 | Y250M-2H 55 | |
| 125CLH-10G | 180 | 93 | 3500 | 7 | 63.3 | Y280S-2H 75 | |
| 125CLH-10AG | 155 | 82 | 3500 | 7 | 49.4 | Y250M-2H 55 | |
| 125CLH-8G | 165 | 123 | 3500 | 6.5 | 79 | Y280M-2H 90 | |
| 125CLH-6.5G | 180 | 158 | 3500 | 6.5 | 107.8 | Y315M-2H 132 | |
| 150CLH-26G | 240 | 28 | 3500 | 6.5 | 24.1 | Y200L1-2H 30 | |
| 150CLH-26AG | 225 | 24 | 3500 | 6.5 | 19.6 | Y180M-2H 22 | |
| 150CLH-22G | 240 | 42 | 3500 | 7.2 | 35.2 | Y225M-2H 45 | |
| 150CLH-18ZG | 190 | 20 | 1750 | 7.5 | 12.9 | Y160L-4H 15 | |
| 150CLH-13.5G | 215 | 72 | 3500 | 6.5 | 56.2 | Y280S-2H 75 | |
| 150CLH-13G | 240 | 28 | 1750 | 4.5 | 22.88 | Y200L-4H 30 | |
| 150CLH-13AG | 224 | 25 | 1740 | 4.5 | 19.3 | Y180L-4H 22 | |
| 150CLH-11G | 215 | 93 | 3500 | 7 | 74.6 | Y280M-2H 90 | |
| 150CLH-10.5 G | 300 | 45 | 1750 | 6 | 49.1 | Y250M-4H 55 | |
| 150CLH-10G | 310 | 123 | 3500 | 6 | 135.1 | Y315L1-2H 160 | |
| 150CLH-9G | 215 | 45 | 1750 | 4.5 | 33.6 | Y225M-4H 45 | |
| 150CLH-9AG | 180 | 40 | 1750 | 4.5 | 26.1 | Y200L-4H 30 | |
| 150CLH-6G | 190 | 72 | 1750 | 6 | 51 | Y280S-4H 75 | |
| 150CLH-6AG | 180 | 64 | 1750 | 6 | 43 | Y250M-4H 55 | |
| 200CLH-9G | 384 | 46 | 1750 | 5.5 | 63.3 | Y280S-4H 75 | |
| 200CLH-12G | 360 | 42 | 1750 | 5.5 | 51.5 | Y280S-4H 75 | |
| 200CLH-12AG | 335 | 36 | 1750 | 5.5 | 41.6 | Y250M-4H 55 | |
| 200CLH-18G | 482 | 29 | 1750 | 5.5 | 47.58 | Y250M-4H 55 | |
| 250CLH-18G | 600 | 43 | 1750 | 5.5 | 87.8 | Y315S-4H 110 | |
| 250CLH-18AG | 600 | 35 | 1750 | 5.5 | 71.5 | Y280M-4H 90 | |
| 250CLH-18BG | 540 | 28 | 1750 | 5.5 | 56.4 | Y280S-4H 75 | |
| 2/40CLH-2G | 7 | 158 | 3500 | 4.2 | 8.9 | Y160M2-2H 15 | |
| 2/40CLH-3G | 24 | 100 | 3500 | 4.2 | 17.2 | Y180M-2H 22 | |
| 2/50CLH-2.5G | 42 | 200 | 3500 | 4.2 | 44.9 | Y250M-2H 55 | |
| 2/65CLH-3.5G | 60 | 172 | 3500 | 5 | 47.6 | Y250M-2H 55 | |
