CIS Series marine horizontal centrifugal pump[Search Related Products]

CIS Series marine horizontal centrifugal pump

CIS Series marine horizontal centrifugal pump

一.General

CIS Series marine horizontal centrifugal pump is widely used for transfer of freshwater, seawater. The pumps are applicable to fire control, cooling and sanitation and applied to industries, to city water supply and drain, and also to agricultural and orchard irrigation.
CIR Series pump shall be used for circulation of hot water. When used to pump hot water not higher than 150℃.
The Performance parameters and installation dimensions of CIR Series pumps are the same as CI Series pumps.

The pump rotates clockwise viewed from motor.

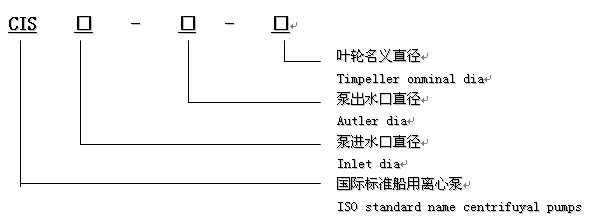

二.Type meaning

CIS Series marine horizontal centrifugal pump

三. Main technical parameter

1.Performance parameters when power frequency is50HZ,and Speed is 2900 r/min

Type (50Hz 3φ 380V) Main technical parameter Motor type & power kW Weight Kg
Capacity m3/h Head m Speed r/min NPSHr m Shaft power kW
CIS50-32-125 7.5 22 2900 2 Y90L-2H 2.2 33
12.5 20 2 1.13
15 18.5 2.5
CIS50-32-125A 6.7 17.6 2900 2 Y90S-2H 1.5 33
11.2 16 2 0.82
13.4 14.8 2.5
CIS50-32-160 7.5 34.3 2900 2 Y100L-2H 3 37
12.5 32 2 2.02
15 29.6 2.5
CIS50-32-160A 7.05 30.5 2900 2 Y90L-2H 2.2 37
11.8 28.5 2 1.7
14.1 26.3 2.5
CIS50-32-160B 6.48 25.6 2900 2 Y90S-2H 1.5 37
10.8 23.8 2 1.35
13 22 2.5
CIS50-32-200 7.5 52.5 2900 2 Y132S1-2H 5.5 52
12.5 50 2 3.54
15 48 2.5
CIS50-32-200A 7.2 48.3 2900 2 Y112M-2H 4 52
12 46 2 3.1
14.4 44.2 2.5
CIS50-32-200B 6.5 39.1 2900 2 Y100L-2H 3 52
10.8 37.3 2 2.29
12.9 35.8 2.5
CIS50-32-250 7.5 82 2900 2 Y160M1-2H 11 72
12.5 80 2 7.17
15 78.5 2.5
CIS50-32-250A 7 71.8 2900 2 Y132S2-2H 7.5 72
11.7 70 2 5.87
14 68.7 2.5
CIS50-32-250B 6.5 61.2 2900 2 Y132S1-2H 5.5 72
10.8 59.7 2 4.63
13 58.5 2.5
CIS65-50-125 15 21.8 2900 2 Y100L-2H 3 34
25 20 2.5 1.97
30 18.5 3
CIS65-50-125A 14.2 19.7 2900 2 Y90L-2H 2.2 34
23.8 18.1 2.5 1.7
28.5 16.7 3
CIS65-50-160 15 35 2900 2 Y132S1-2H 5.5 45
25 32 2 3.35
30 30 2.5
CIS65-50-160A 14 30.5 2900 2 Y112M-2H 4 45
23.4 28 2 2.75
28 26.2 2.5
CIS65-50-160B 13 26.3 2900 2 Y100L-2H 3 45
21.7 24 2 2.2
26 22.6 2.5
CIS65-40-200 15 53 2900 2 Y132S2-2H 7.5 58
25 50 2 5.67
30 47 2.5
CIS65-40-200A 14 46 2900 2 Y132S1-2H 5.5 58
23.4 44 2 4.67
28 41 2.5
CIS65-40-200B 12.6 37.3 2900 2 Y112M-2H 4 58
21 35.3 2 3.36
25.2 33.1 2.5
CIS65-40-250 15 82 2900 2 Y160M2-2H 15 76
25 80 2 10.28
30 78 2.5
CIS65-40-250A 14 71.8 2900 2 Y160M1-2H 11 76
23.4 70 2 8.42
28 68.3 2.5
CIS65-40-250B 12.6 57.8 2900 2 Y132S2-2H 7.5 76
21 56 2 6.04
25.2 83.2 2.5
CIS65-40-315 15 127 2900 2.5 Y200L1-2H 30 84
25 125 2.5 21.3
30 123 3
CIS65-40-315A 14.3 116 2900 2.5 Y180M-2H 22 84
23.9 114 2.5 18.6
28.6 112 3
CIS65-40-315B 13.6 104.5 2900 2.5 Y160L-2H 18.5 84
22.7 103 2.5 15.92
27.2 101 3
CIS65-40-315C 12.8 91.5 2900 2.5 Y160M2-2H 15 84
21.4 90 2.5 13.1
25.6 88.5 3
CIS80-65-125 30 22.5 2900 3 Y132S1-2H 5.5 47
50 20 3 3.63
60 18 3.5
CIS80-65-125A 27 18.2 2900 3 Y112M-2H 4 47
45 15 3 2.96
54 14.5 3.5
CIS80-65-160 30 36 2900 2.5 Y132S2-2H 7.5 52
50 32 2.5 5.97
60 29 3
CIS80-65-160A 28 31 2900 2.5 Y132S1-2H 5.5 52
46.8 28 2.5 4.9
56 25 3
CIS80-65-160B 25.2 25.4 2900 2.5 Y112M-2H 4 52
42 22 2.5 3.49
50.4 20 3
CIS80-50-200 30 53 2900 2.5 Y160M2-2H 15 60
50 50 2.5 9.87
60 47 3
CIS80-50-200A 28 46 2900 2.5 Y160M1-2H 11 60
46.8 44 2.5 8.25
56 41 3
CIS80-50-200B 26 39.7 2900 2.5 Y132S2-2H 7.5 60
43.3 37.5 2.5 6.6
52 35 3
CIS80-50-250 30 84 2900 2.5 Y180M-2H 22 97
50 80 2.5 17.3
60 75 3
CIS80-50-250A 28 73.5 2900 2.5 Y160L-2H 18.5 97
46.8 70 2.5 14.6
56 65.5 3
CIS80-50-250B 26 63 2900 2.5 Y160M2-2H 15 97
43.3 60 2.5 11.8
52 56 3
CIS80-50-315 30 128 2900 2.5 Y200L2-2H 37 108
50 125 2.5 31.5
60 123 3
CIS80-50-315A 28.6 116 2900 2.5 Y200L2-2H 37 108
47.7 114 2.5 28
57.2 112 3
CIS80-50-315B 27.2 105 2900 2.5 Y200L1-2H 30 108
45.4 103 2.5 24.5
54.5 101 3
CIS80-50-315C 25.2 90.6 2900 2.5 Y180M-2H 22 108
42 88.5 2.5 19.7
50.4 87.1 3
CIS100-80-125 60 24 2900 4 Y160M1-2H 11 49
100 20 4.5 7
120 16.5 5
CIS100-80-125A 56 20.4 2900 4 Y132S2-2H 7.5 49
93.5 17 4.5 5.73
112 14 5
CIS100-80-160 60 36 2900 3.5 Y160M2-2H 15 64
100 32 4 11.2
120 28 5
CIS100-80-160A 56 31.5 2900 3.5 Y160M1-2H 11 64
93.5 28 4 9.27
112 24.5 5
CIS100-80-160B 49.4 24.4 2900 3.5 Y132S2-2H 7.5 64
82.4 21.7 4 6.4
98.8 19 5
CIS100-65-200 60 54 2900 3 Y180M-2H 22 78
100 50 3.6 17.9
120 47 4.8
CIS100-65-200A 56 47.5 2900 3 Y160L-2H 18.5 78
93.5 44 3.6 14.75
112 41.3 4.8
CIS100-65-200B 52 41 2900 3 Y160M2-2H 15 78
86.6 38 3.6 12
104 35.5 4.8
CIS100-65-250 60 87 2900 3.5 Y200L2-2H 37 112
100 80 3.8 30.3
120 74.5 4.8
CIS100-65-250A 56 76 2900 3.5 Y200L1-2H 30 112
93.5 70 3.8 24.8
112 65 4.8
CIS100-65-250B 51.2 63.2 2900 3.5 Y180M-2H 22 112
85.3 58.2 3.8 18.8
102.4 54.1 4.8
CIS100-65-315 60 133 2900 3 Y280S-2H 75 128
100 125 3.6 51.6
120 118 4.2
CIS100-65-315A 57.3 121 2900 3 Y250M-2H 55 128
95.5 114 3.6 45
114.6 107 4.2
CIS100-65-315B 54.5 109 2900 3 Y225M-2H 45 128
90.8 103 3.6 39.3
109 97 4.2
CIS100-65-315C 51.5 97 2900 3 Y200L2-2H 37 128
85.8 92 3.6 33.5
103 86.8 4.2
CIS125-100-200 120 57.5 2900 4.5 Y225M-2H 45 92
200 50 4.5 33.6
240 45.8 5
CIS125-100-200A 112 50.6 2900 4.5 Y200L2-2H 37 92
187 44 4.5 27.7
224 38.9 5
CIS125-100-200B 99 39.1 2900 4.5 Y180M-2H 22 92
165 34.1 4.5 19
198 30.2 5
CIS125-100-250 120 87 2900 3.8 Y280S-2H 75 127
200 80 4.2 55.9
240 72 5
CIS125-100-250A 112 76 2900 3.8 Y250M-2H 55 127
187 70 4.2 45.8
224 62.5 5
CIS125-100-250B 104 65 2900 3.8 Y225M-2H 45 127
173 60 4.2 36.8
208 53.5 5
CIS125-100-250C 96 53 2900 3.8 Y200L2-2H 37 127
160 49 4.2 29
192 44 5
CIS125-100-315 120 132.5 2900 4 Y315S-2H 110 152
200 125 4.5 90.8
240 120 5
CIS125-100-315A 114.6 120 2900 4 Y315S-2H 110 152
191 114 4.5 79.1
229.2 109 5
CIS125-100-315B 109 109 2900 4 Y280M-2H 90 152
181.6 103 4.5 68.9
218 98.5 5
CIS125-100-315C 103 97.5 2900 4.5 Y280S-2H 75 152
171.6 92 4.5 58.9
206 88 5
2.Performance parameters when power frequency is50HZ,and Speed is 1450r/min
