Carbon Steel Hemispherical Head

Carbon Steel Hemispherical Head

Carbon Steel Hemispherical Head:

Other names of hemispherical head: hemispherical end, hemispherical cap, dished hemispherical head, dished hemispherical end, etc.;

Surface treatment: sand blasting, pickling, passivation, polishing, coating, lining, oiling, etc.;

ASME stamp available if required;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, JIS, GOST, etc.
Material	Carbon steel: SA516 GR60/65/70, SA387 GR11 CL2, SA387 GR12, SA387 GR22 CL2, SA234 GR WPB/WPC, SA537 CL1/CL2, SA105, Q235, Q245R, Q345R, Q370R, 16MnDR, 15MnVR, 19Mn6, HI. HII, P235, PH235, P355, PH355, P235GH, P245GH, P265GH, P295GH, SB410, SB450, SPV355, SEV245, etc.;
Structure	Seamless or welded
Process Type	Hot pressing, cold pressing, cold spinning, segment, etc.
Connection Type	Butt welded
Edge Type	Bevel, plain or as required

Pictures:

Carbon Steel Hemispherical Head

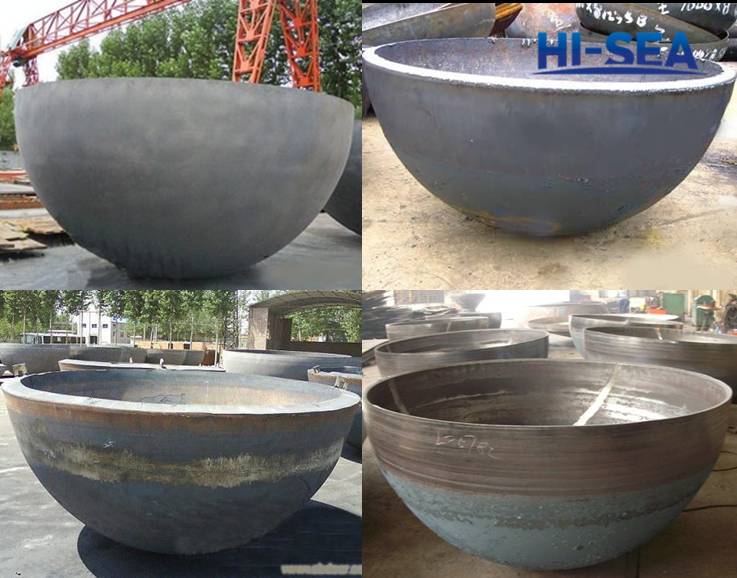

Carbon Steel Hemispherical Head Finished

Carbon Steel Hemispherical Head

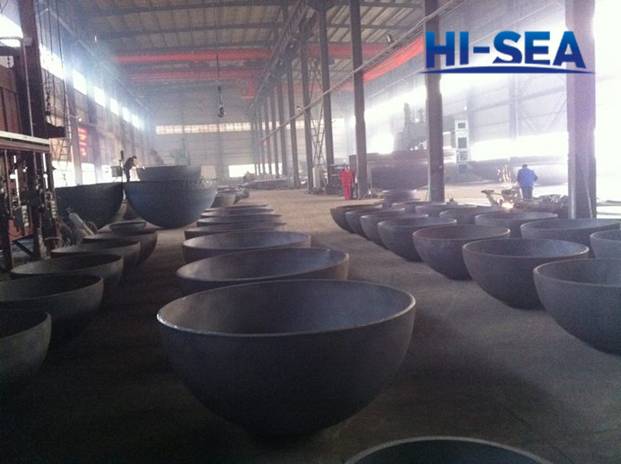

Carbon Steel Hemispherical Head in Workshop

Carbon Steel Hemispherical Head

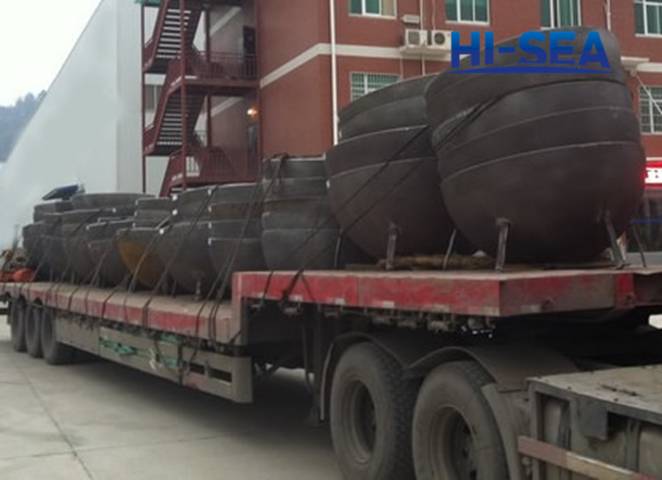

Carbon Steel Hemispherical Head Delivered

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
