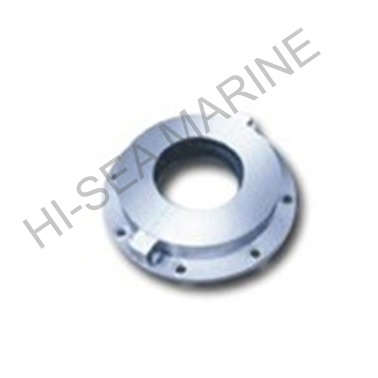

BSD TYPE Bulkhead Sealing Apparatus[Search Related Products]

;

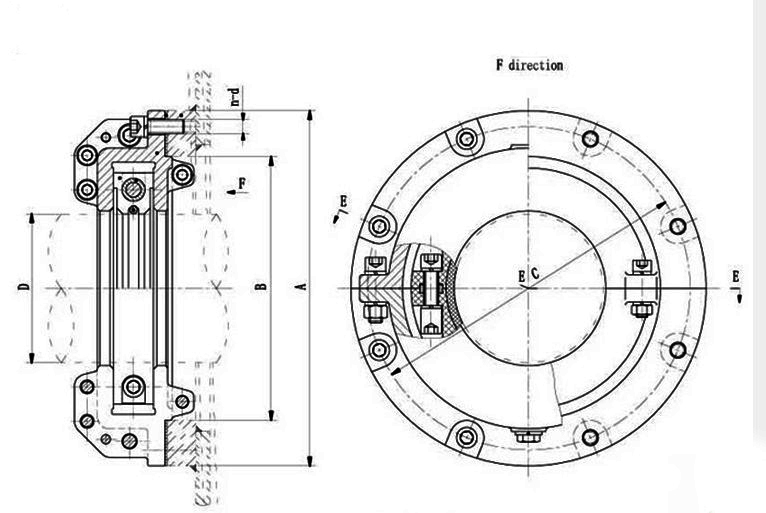

Size		70	80	90	106	110	122	125	130	150	170	175	180	200
Dimensions (mm)	D	70	80	90	106	110	122	125	130	150	170	175	180	200
	A	250	225	270	305	290	305	270	310	330	335	350	360	380
	B	170	180	190	230	210	238	245	230	250	280	280	280	300
	C	220	200	240	276	260	276	225	282	300	306	310	330	350
	d-n	8-M10	8-M10	8-M10	8-M10	8-M10	8-M10	8-M10	8-M12	8-M12	8-M12	8-M12	8-M12	8-M12
