ame Arrester Relief Breather Valve[Search Related Products]
Relief Valve with Flame Arresting
Materials of construction£º
|
NO |
1 |
2 |
3 |
4 |
5 |
6 |
| Component | Body | Stem Guide | Pressure Disk | Pressure Seat | Gasket | Fire Arresting |
|
Material |
Steel
Aluminums Casting |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º-295pa-+98000pa £¨-30mmH2O¡ª¡ª+10000mmH2O£©

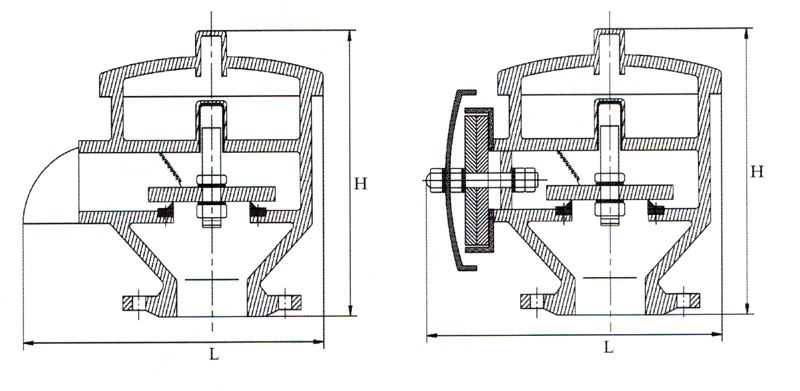

Dimension table£º
|
DN |
25 |
32 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
|
L |
240 |
260 |
290 |
290 |
420 |
420 |
535 |
700 |
835 |
950 |
|
H |
270 |
290 |
320 |
320 |
470 |
470 |
540 |
620 |
700 |
780 |
