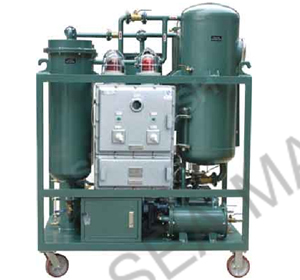

XL-J series Insulation oil filter machine[Search Related Products]
¡¡
Vacuum oil filter for oil recycle
XL-J oil filter machine is widely used to regenerate and purify the deteriorated transformer oil, circuit break oil, capacitor oil, low viscosity lubricanting oil, in power generation plants, transformer stations, electric transmission and supplying company factories, mines, railway transportation, etc.
B.It can be used as special equipment for electric power transformer maintenance.

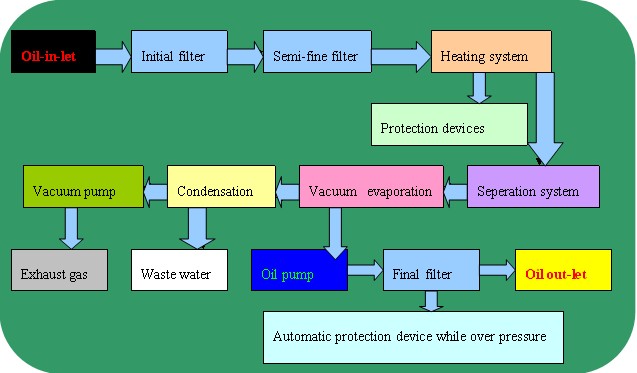

C.Not only can it remove water gas and other imprities from the oil, but also it can remove oxide materials and remove free carbon in the deteriorated oil to lower in PH Value, improve its breakdown voltage and quality. Also serving as the vacuum oiling equipment and drying equipment, this filter can live line work on the spot.
|
Name |
Unit |
XL-20J |
XL-30J |
XL-50J |
XL-100J |
XL-150J |
XL-200J |
XL-300J |
XL-500J |
|
|
Flow |
L/H |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
30000 |
|
|
Vacuum Temparature |
Mpa |
-0.06~-0.096 |
||||||||
|
Temparature Range |
Mpa |
¡Ü0.5 |
||||||||
|
Temperature Range |
¡æ |
¡Ü80 |
||||||||
|
Power supply |
v |
380V,50Hz ( or at users optiom) |
||||||||
|
Working Noise |
V |
¡Ü75 |
||||||||
|
Heating Power |
Db(A) |
18 |
18 |
24 |
45 |
60 |
90 |
120 |
180 |
|
|
Total power |
Kw |
21 |
21 |
28 |
50 |
65 |
98 |
120 |
196 |
|
|
Pipeline diameter |
mm |
25 |
25 |
32 |
40 |
50 |
50 |
65 |
80 |
|
|
Netweight |
Kg |
400 |
450 |
550 |
680 |
850 |
900 |
1200 |
2000 |
|
|
Oberall Dimension |
L |
Mm |
1000 |
1000 |
1150 |
1300 |
1350 |
1450 |
1600 |
1700 |
|
|
W |
Mm |
1000 |
1000 |
1150 |
1300 |
1350 |
1450 |
1600 |
1700 |
|
|
H |
mm |
1600 |
1650 |
1700 |
1800 |
2100 |
2200 |
2300 |
2450 |
|
Water content |
Mg/L |
¡Ü5 (GB/T7600) |
||||||||
|
Gas Content |
% |
¡Ü0.1(GB/T423) |
||||||||
|
Breakdown voltage |
min |
45-70(GB/T507) |
||||||||
|
Filtering Accuracy |
¦Ìm |
1-5(or at user¡¯s option ) |
||||||||
|
Mechanical Impurity |
Mgkoh/g |
NO (GB/T511) |
||||||||
