119 Round Strand Wire Rope
Introduction:
We are mainly focus on producing wire rope with large diameter, super length, high tension and special construction. Diameter ranges from 0.18mm to 260mm in a variety of ropes of point contact, line contact and surface contact. The tensile strength can reach Grade 2160 or EEIPS.
There are all kinds of wire drawings, twisting equipmets and morden assembly line can enable pre-tension, heat treatment hot-dip galvanizing for ropes in different diameters. We can produce various of steel wire rope according to our national standards such as GB8919, GB/T20118, GB/T20067 and also international standards ISO, ASTM, EN, JIS and API etc. Got API, DNV, LR, BV, CCS, MA and KA certification,which assure good quality control.



119 Round Strand Wire Rope

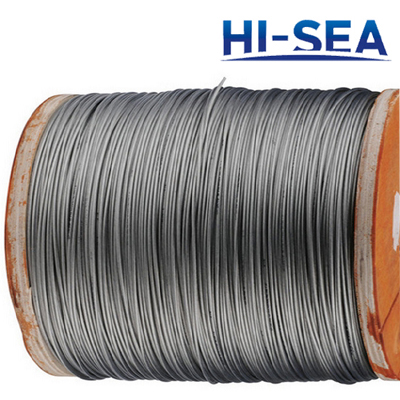

1X19 Round Strand Wire Rope

  • Rope type:Slngle strand wire rope
  • Rope Construction119
Rope Diameter (mm) Approx Weight (kg/100m) Tensile Strength (Mpa)
1570 1670 1770 1870
Minimum Breaking Strength (kN)
3 4.56 7.49 7.97 8.44 8.92
3.5 6.21 10.2 10.8 11.5 12.1
4 8.11 13.3 14.2 15 15.9
4.5 10.3 16.9 17.9 19 20.1
5 12.7 20.8 22.1 23.5 24.8
5.5 15.3 25.2 26.8 28.4 30
6 18.3 30 31.9 33.8 35.7
6.5 21.4 35.2 37.4 39.6 41.9
7 24.8 40.8 43.4 46 48.6
7.5 28.5 46.8 49.8 52.8 55.7
8 32.4 56.6 56.6 60 63.4
8.5 36.6 60.1 63.9 67.8 71.6
9 41.1 67.4 71.7 76 80.3
10 50.7 83.2 88.6 93.8 99.1
11 61.3 101 107 114 120
12 73 120 127 135 143
13 85.7 141 150 159 167
14 99.4 163 173 184 194
15 114 187 199 211 223
16 130 213 227 240 254


Note:Minimum aggregate breaking strength = Minimum breaking strength1.111
